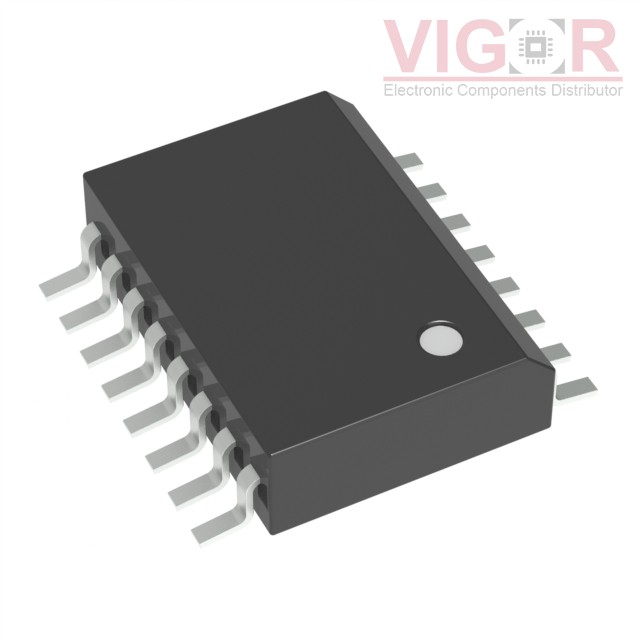

MC14520BDWG

Part No :: MC14520BDWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3881942

Description: IC COUNTER DUAL BINARY 16-SOIC

Catalog: Logic - Counters, Dividers

DataSheet: MC14520BDWG PDF

Country of origin: -

Date code: -

MC14520BDWG Specifications

Type	Description
Series:	4000B
Package:	Tube
Part Status:	Active
Logic Type:	Binary Counter
Direction:	Up
Number of Elements:	2
Number of Bits per Element:	4
Reset:	Asynchronous
Timing:	Synchronous
Count Rate:	8 MHz
Trigger Type:	Positive, Negative
Voltage - Supply:	3 V ~ 18.0 V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
CD4520BMG4 Match 100%	Texas Instruments IC DUAL BIN UP-COUNTER 16-SOIC	MC14520BDWG vs CD4520BMG4
CD4520BME4 Match 100%	Texas Instruments IC DUAL BIN UP-COUNTER 16-SOIC	MC14520BDWG vs CD4520BME4
MC14516BDG Match 69%	Sanyo Semiconductor/ON Semiconductor IC COUNTER BINARY UP/DOWN 16SOIC	MC14520BDWG vs MC14516BDG
CD4520BM96 Match 100%	Texas Instruments IC DUAL BIN UP-COUNTER 16-SOIC	MC14520BDWG vs CD4520BM96
MC14520BDWR2G Match 100%	VIGOR DUAL BCD UP COUNTER	MC14520BDWG vs MC14520BDWR2G
CD4520BM Match 100%	Texas Instruments IC DUAL BIN UP-COUNTER 16-SOIC	MC14520BDWG vs CD4520BM
