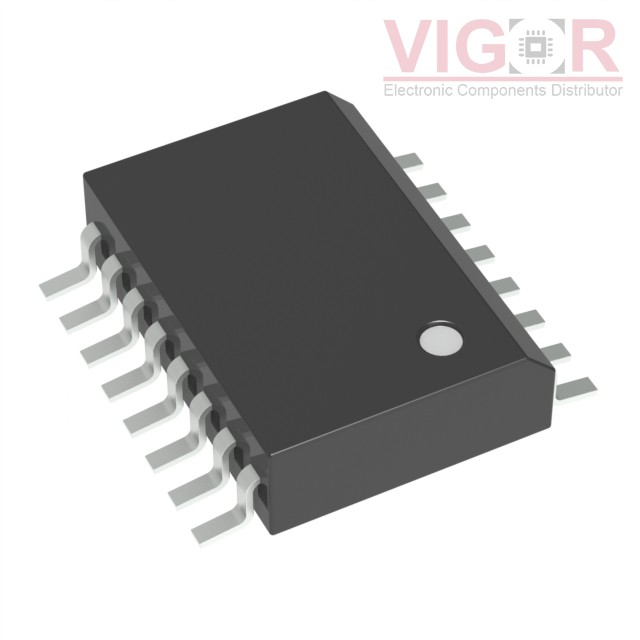

MC14520BDWR2G

Part No :: MC14520BDWR2G

Manufacturer: VIGOR

VIGOR # :: 3883139

Description: DUAL BCD UP COUNTER

Catalog: Logic - Counters, Dividers

DataSheet: MC14520BDWR2G PDF

Country of origin: -

Date code: -

MC14520BDWR2G Specifications

Type	Description
Series:	4000B
Package:	Bulk
Part Status:	Active
Logic Type:	Binary Counter
Direction:	Up
Number of Elements:	2
Number of Bits per Element:	4
Reset:	Asynchronous
Timing:	Synchronous
Count Rate:	8 MHz
Trigger Type:	Positive, Negative
Voltage - Supply:	3 V ~ 18.0 V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC
