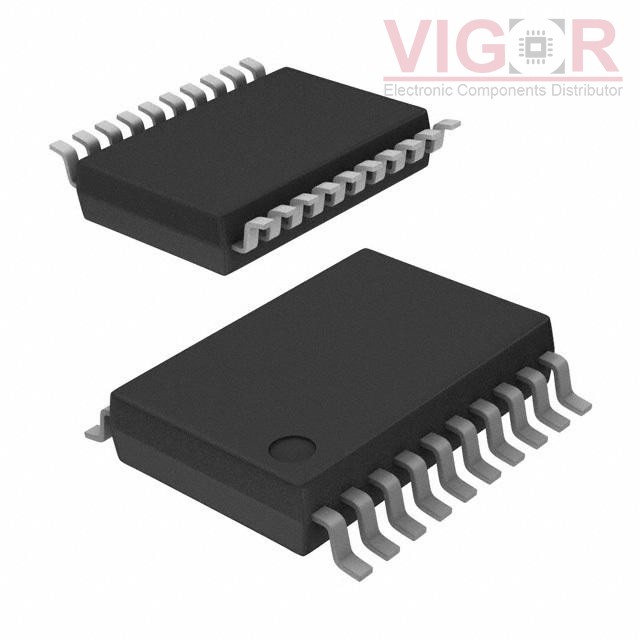

SN74ACT564DBR

Part No :: SN74ACT564DBR

Manufacturer: Texas Instruments

VIGOR # :: 4885626

Description: IC FF D-TYPE SNGL 8BIT 20SSOP

Catalog: Logic - Flip Flops

DataSheet: SN74ACT564DBR PDF

Country of origin: -

Date code: -

SN74ACT564DBR Specifications

Type	Description
Series:	74ACT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Function:	Standard
Type:	D-Type
Output Type:	Tri-State, Inverted
Number of Elements:	1
Number of Bits per Element:	8
Clock Frequency:	90 MHz
Max Propagation Delay @ V, Max CL:	10.5ns @ 5V, 50pF
Trigger Type:	Positive Edge
Current - Output High, Low:	24mA, 24mA
Voltage - Supply:	4.5V ~ 5.5V
Current - Quiescent (Iq):	4 µA
Input Capacitance:	4.5 pF
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	20-SSOP
Package / Case:	20-SSOP (0.209", 5.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74AC534DBR Match 77%	Texas Instruments IC FF D-TYPE SNGL 8BIT 20SSOP	SN74ACT564DBR vs SN74AC534DBR
SN74AC564DBR Match 98%	Texas Instruments IC FF D-TYPE SNGL 8BIT 20SSOP	SN74ACT564DBR vs SN74AC564DBR
SN74ACT564DBRG4 Match 100%	Texas Instruments IC FF D-TYPE SNGL 8BIT 20SSOP	SN74ACT564DBR vs SN74ACT564DBRG4
SN74ACT564DBRE4 Match 100%	Texas Instruments IC FF D-TYPE SNGL 8BIT 20SSOP	SN74ACT564DBR vs SN74ACT564DBRE4
