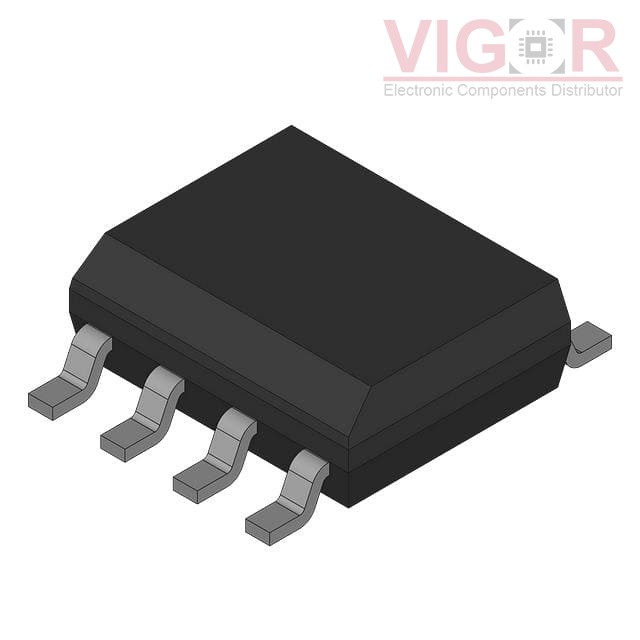

MC100EP05DR2

Part No :: MC100EP05DR2

Manufacturer: VIGOR

VIGOR # :: 3959087

Description: AND/NAND GATE

Catalog: Logic - Gates and Inverters - Multi-Function, Configurable

DataSheet: MC100EP05DR2 PDF

Country of origin: -

Date code: -

MC100EP05DR2 Specifications

Type	Description
Series:	100EP
Package:	Bulk
Part Status:	Obsolete
Logic Type:	2 Input AND/NAND Gate
Number of Circuits:	1
Number of Inputs:	2
Schmitt Trigger Input:	No
Output Type:	Differential
Current - Output High, Low:	-
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
MC100EL07DR2G Match 100%	VIGOR XOR/XNOR GATE, 100EL SERIES, 1-F	MC100EP05DR2 vs MC100EL07DR2G
MC100EP05D Match 100%	VIGOR AND/NAND GATE	MC100EP05DR2 vs MC100EP05D
MC10EL05D Match 100%	VIGOR AND/NAND GATE	MC100EP05DR2 vs MC10EL05D
MC100EL07DG Match 100%	VIGOR XOR/XNOR GATE	MC100EP05DR2 vs MC100EL07DG
MC10EL04DR2G Match 100%	VIGOR AND/NAND GATE	MC100EP05DR2 vs MC10EL04DR2G
MC100EL04D Match 100%	VIGOR AND/NAND GATE	MC100EP05DR2 vs MC100EL04D
