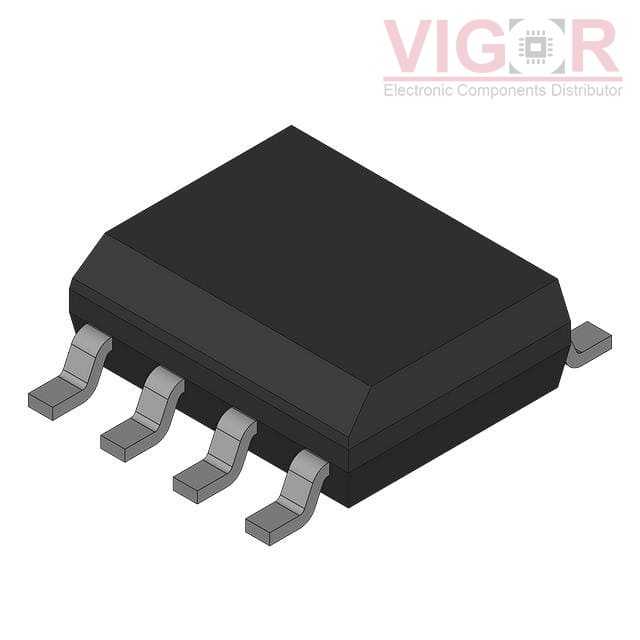

MC100EP05D

Part No :: MC100EP05D

Manufacturer: VIGOR

VIGOR # :: 3959099

Description: AND/NAND GATE

Catalog: Logic - Gates and Inverters - Multi-Function, Configurable

DataSheet: MC100EP05D PDF

Country of origin: -

Date code: -

MC100EP05D Specifications

Type	Description
Series:	100EP
Package:	Tube
Part Status:	Obsolete
Logic Type:	2 Input AND/NAND Gate
Number of Circuits:	1
Number of Inputs:	2
Schmitt Trigger Input:	No
Output Type:	Differential
Current - Output High, Low:	-
Voltage - Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
