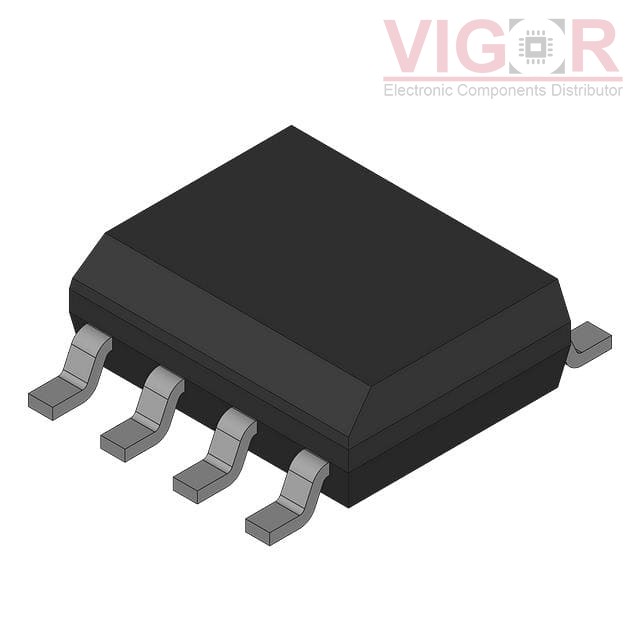

MC100LVEL05DR2

Part No :: MC100LVEL05DR2

Manufacturer: VIGOR

VIGOR # :: 3959610

Description: AND/NAND GATE

Catalog: Logic - Gates and Inverters - Multi-Function, Configurable

DataSheet: MC100LVEL05DR2 PDF

Country of origin: -

Date code: -

MC100LVEL05DR2 Specifications

Type	Description
Series:	100LVEL
Package:	Bulk
Part Status:	Obsolete
Logic Type:	2 Input AND/NAND Gate
Number of Circuits:	1
Number of Inputs:	2
Schmitt Trigger Input:	No
Output Type:	Differential
Current - Output High, Low:	-
Voltage - Supply:	3V ~ 3.8V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
MC10EP05D Match 100%	VIGOR AND/NAND GATE	MC100LVEL05DR2 vs MC10EP05D
MC10EP08DR2 Match 100%	VIGOR XOR/XNOR GATE, 10E SERIES	MC100LVEL05DR2 vs MC10EP08DR2
MC100LVEL12DG Match 100%	VIGOR OR-AND GATE	MC100LVEL05DR2 vs MC100LVEL12DG
MC10EL04D Match 100%	VIGOR AND/NAND GATE	MC100LVEL05DR2 vs MC10EL04D
MC10EL07D Match 100%	VIGOR XOR/XNOR GATE, 10EL SERIES	MC100LVEL05DR2 vs MC10EL07D
MC10EL04DG Match 100%	VIGOR AND/NAND GATE, 10EL SERIES, 1-FU	MC100LVEL05DR2 vs MC10EL04DG
