74LVC2G00GXX

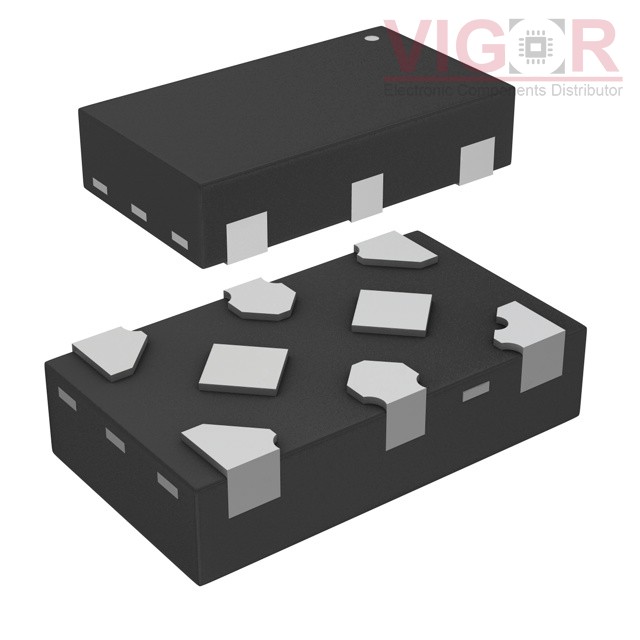

Image is for reference,
please contact us to get the real picture

Part No :: 74LVC2G00GXX

Manufacturer: VIGOR

Description: IC GATE NAND 2CH 2-INP 8X2SON

Catalog: Logic - Gates and Inverters

DataSheet: 74LVC2G00GXX PDF

Availability: 350 pieces

Unit Price: ~~$0.14000~~

Current price of 74LVC2G00GXX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74LVC2G00GXX Specifications

Type	Description
Series:	74LVC
Package:	Bulk
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	3.3V ~ 5V
Current - Quiescent (Max):	4 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.1V ~ 0.8V
Logic Level - High:	0.95V ~ 3.4V
Max Propagation Delay @ V, Max CL:	4.2ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-X2SON (1.35x0.8)
Package / Case:	8-XFDFN Exposed Pad

Please confirm the specifications of the products when ordering.
