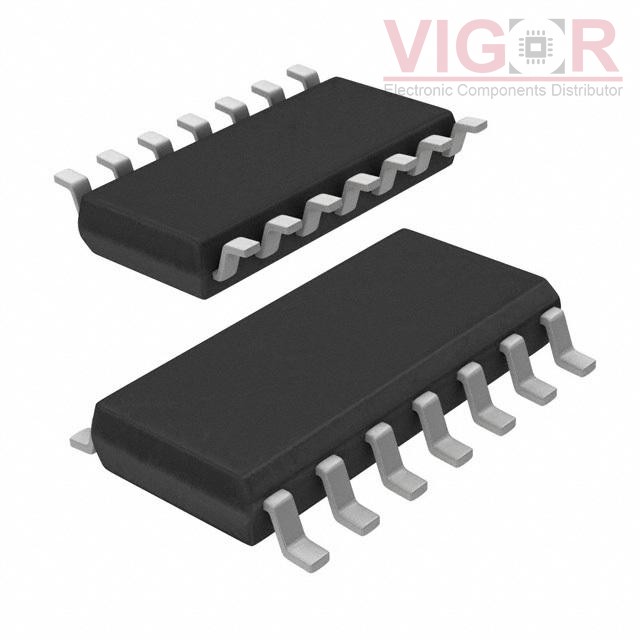

HEF4093BT,652

Part No :: HEF4093BT,652

Manufacturer: Nexperia

VIGOR # :: 3814112

Description: IC GATE NAND SCHMIT 4CH 2IN 14SO

Catalog: Logic - Gates and Inverters

DataSheet: HEF4093BT,652 PDF

Country of origin: -

Date code: -

HEF4093BT,652 Specifications

Type	Description
Series:	4000B
Package:	Tube
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	4
Number of Inputs:	2
Features:	Schmitt Trigger
Voltage - Supply:	3V ~ 15V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	3.4mA, 3.4mA
Logic Level - Low:	1.5V ~ 4V
Logic Level - High:	3.5V ~ 11V
Max Propagation Delay @ V, Max CL:	60ns @ 15V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	14-SO
Package / Case:	14-SOIC (0.154", 3.90mm Width)
