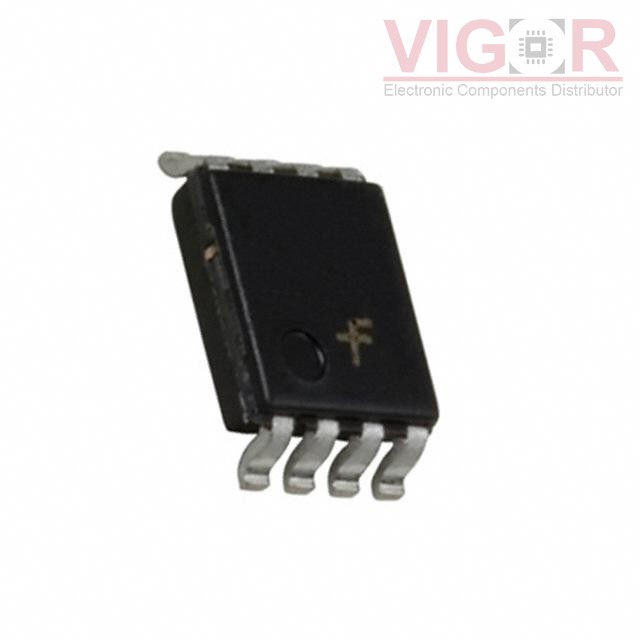

NC7WZ86K8X

Part No :: NC7WZ86K8X

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3814570

Description: IC GATE XOR 2CH 2-INP US8

Catalog: Logic - Gates and Inverters

DataSheet: NC7WZ86K8X PDF

Country of origin: -

Date code: -

NC7WZ86K8X Specifications

Type	Description
Series:	7WZ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Logic Type:	XOR (Exclusive OR)
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	4.2ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Supplier Device Package:	US8
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
NL27WZ86USG Match 100%	Sanyo Semiconductor/ON Semiconductor IC GATE XOR 2CH 2-INP US8	NC7WZ86K8X vs NL27WZ86USG
NL27WZ86US Match 100%	VIGOR IC GATE XOR 2CH 2-INP US8	NC7WZ86K8X vs NL27WZ86US
NLV27WZ86USG Match 100%	VIGOR IC GATE XOR 2CH 2-INP US8	NC7WZ86K8X vs NLV27WZ86USG

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 300

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.5200~~	~~$0.52~~
3000	~~$0.1452~~	~~$435.60~~
6000	~~$0.1364~~	~~$818.40~~
15000	~~$0.1276~~	~~$1 914.00~~
30000	~~$0.1170~~	~~$3 511.20~~
75000	~~$0.1126~~	~~$8 448.00~~

Current price of NC7WZ86K8X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
