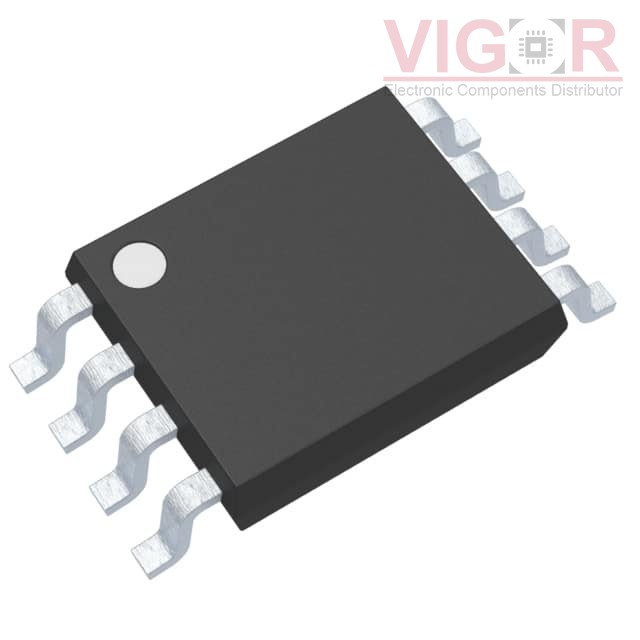

74LVC2G32DC,125

74LVC2G32DC,125 Specifications

Type	Description
Series:	74LVC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Logic Type:	OR Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	4 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.7V ~ 0.8V
Logic Level - High:	1.7V ~ 2V
Max Propagation Delay @ V, Max CL:	3.2ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSSOP
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LVC2G32DCURE4 Match 100%	Texas Instruments IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs SN74LVC2G32DCURE4
SN74LVC2G32DCUR Match 100%	Texas Instruments IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs SN74LVC2G32DCUR
SN74LVC2G32DCUTG4 Match 100%	Texas Instruments IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs SN74LVC2G32DCUTG4
SN74LVC2G32DCURG4 Match 100%	Texas Instruments IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs SN74LVC2G32DCURG4
SN74LVC2G32DCUT Match 100%	Texas Instruments IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs SN74LVC2G32DCUT
74LVC2G32DC-Q100H Match 100%	Nexperia IC GATE OR 2CH 2-INP 8VSSOP	74LVC2G32DC,125 vs 74LVC2G32DC-Q100H
