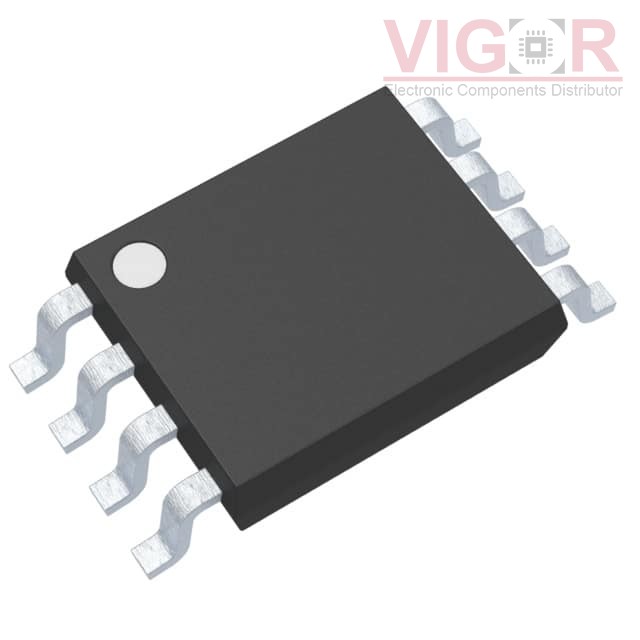

74LVC2G00DC-Q100H

Part No :: 74LVC2G00DC-Q100H

Manufacturer: Nexperia

VIGOR # :: 3819597

Description: IC GATE NAND 2CH 2-INP 8VSSOP

Catalog: Logic - Gates and Inverters

DataSheet: 74LVC2G00DC-Q100H PDF

Country of origin: -

Date code: -

74LVC2G00DC-Q100H Specifications

Type	Description
Series:	Automotive, AEC-Q100, 74LVC
Package:	Tape & Reel (TR)
Part Status:	Active
Logic Type:	NAND Gate
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	4 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	3.3ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSSOP
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

Alternative Products

Part Number	Manufacturer & Description	Compare
SN74LVC2G00DCUTG4 Match 100%	Texas Instruments IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs SN74LVC2G00DCUTG4
74LVC2G00DC,125 Match 100%	Nexperia IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs 74LVC2G00DC,125
SN74LVC2G00DCURG4 Match 100%	Texas Instruments IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs SN74LVC2G00DCURG4
SN74LVC2G00DCUT Match 100%	Texas Instruments IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs SN74LVC2G00DCUT
SN74LVC2G00DCUR Match 100%	Texas Instruments IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs SN74LVC2G00DCUR
SN74LVC2G00DCURE4 Match 100%	Texas Instruments IC GATE NAND 2CH 2-INP 8VSSOP	74LVC2G00DC-Q100H vs SN74LVC2G00DCURE4

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 648

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1587~~	~~$0.16~~
3000	~~$0.1587~~	~~$476.22~~

Current price of 74LVC2G00DC-Q100H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
