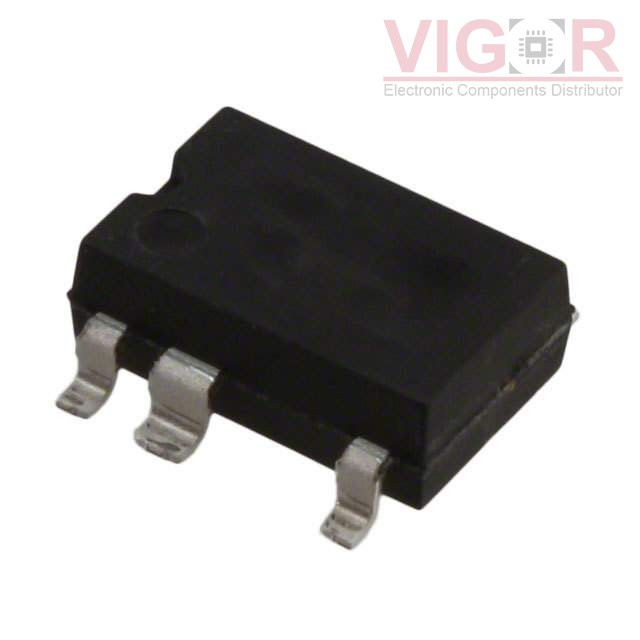

LNK501GN-TL

Part No :: LNK501GN-TL

Manufacturer: Power Integrations

VIGOR # :: 3931155

Description: IC SWIT OCP CV/CC HV 8SMD

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: LNK501GN-TL PDF

Country of origin: -

Date code: -

LNK501GN-TL Specifications

Type	Description
Series:	LinkSwitch®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	77%
Frequency - Switching:	30kHz ~ 42kHz
Power (Watts):	5.5 W
Fault Protection:	Current Limiting, Open Loop, Over Temperature, Short Circuit
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-SMD (7 Leads), Gull Wing
Supplier Device Package:	SMD-8B
Mounting Type:	Surface Mount
