ICE2QR2280ZXKLA1

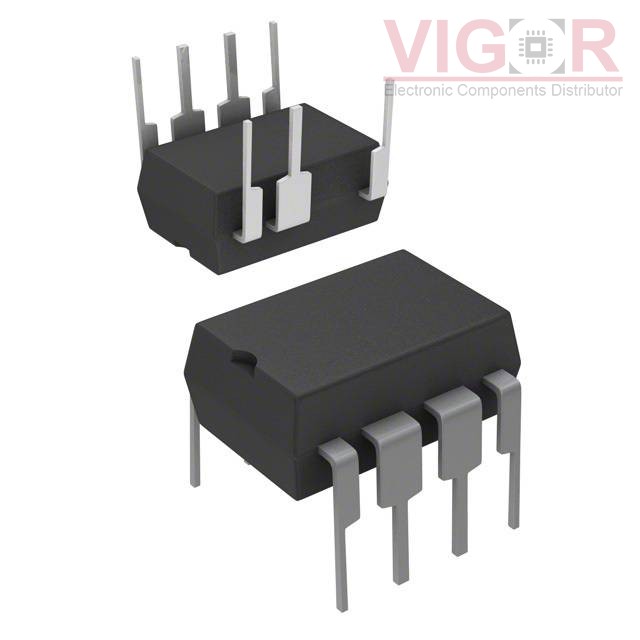

Part No :: ICE2QR2280ZXKLA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3932773

Description: IC CTRLR SMPS QUASI-RESON 7DIP

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: ICE2QR2280ZXKLA1 PDF

Country of origin: -

Date code: -

ICE2QR2280ZXKLA1 Specifications

Type	Description
Series:	CoolMOS™, CoolSET™-Q1
Package:	Tube
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	800V
Topology:	Flyback
Voltage - Start Up:	18 V
Voltage - Supply (Vcc/Vdd):	10.5V ~ 27V
Duty Cycle:	50%
Frequency - Switching:	52kHz
Power (Watts):	54 W
Fault Protection:	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:	PG-DIP-7
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
ICE3BR4765JZXKLA1 Match 76%	VIGOR SWITCHING CONTROLLER, CURRENT-MO	ICE2QR2280ZXKLA1 vs ICE3BR4765JZXKLA1
ICE2QR2280Z1XKLA1 Match 100%	VIGOR SWITCHING REG/CONTROLLER, 65KHZ	ICE2QR2280ZXKLA1 vs ICE2QR2280Z1XKLA1
ICE2QR1765ZXKLA1 Match 93%	IR (Infineon Technologies) IC CTRLR SMPS QUASI-RESON 7DIP	ICE2QR2280ZXKLA1 vs ICE2QR1765ZXKLA1
ICE2QR0665ZXKLA1 Match 93%	IR (Infineon Technologies) IC CTRLR SMPS QUASI-RESON 7DIP	ICE2QR2280ZXKLA1 vs ICE2QR0665ZXKLA1
ICE2QR4765ZXKLA1 Match 93%	VIGOR ICE2QR4765 - QUASI RESONANT COOL	ICE2QR2280ZXKLA1 vs ICE2QR4765ZXKLA1
ICE2QR4780ZXKLA1 Match 100%	VIGOR AC-DC INTEGRATED POWER STAGE	ICE2QR2280ZXKLA1 vs ICE2QR4780ZXKLA1
