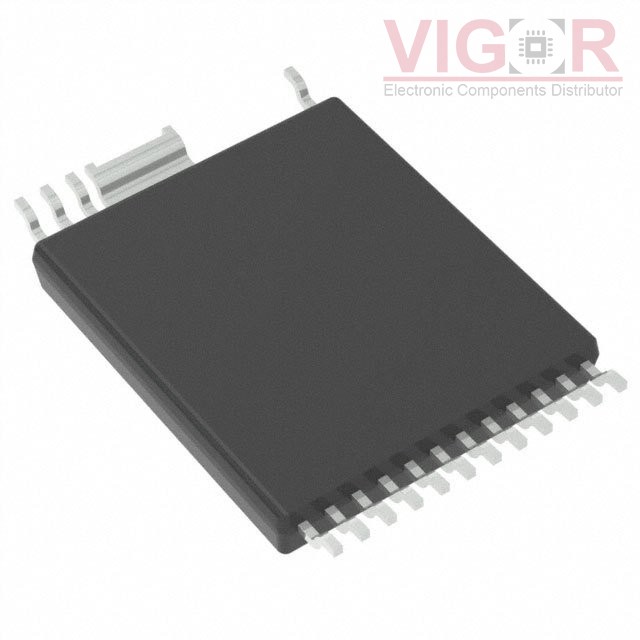

INN3167C-H109-TL

Image is for reference,
please contact us to get the real picture

Part No :: INN3167C-H109-TL

Manufacturer: Power Integrations

Description: IC OFFLINE SWITCH SR CONTROL

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: INN3167C-H109-TL PDF

Availability: 328 pieces

Unit Price: ~~$1.21001~~

Current price of INN3167C-H109-TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

INN3167C-H109-TL Specifications

Type	Description
Series:	PowiGaN™, InnoSwitch™3-CE
Package:	Tape & Reel (TR)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	650V
Topology:	Flyback, Secondary Side SR
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	-
Frequency - Switching:	100kHz
Power (Watts):	40 W
Fault Protection:	Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 105°C (TA)
Package / Case:	24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Supplier Device Package:	InSOP-24D
Mounting Type:	Surface Mount
