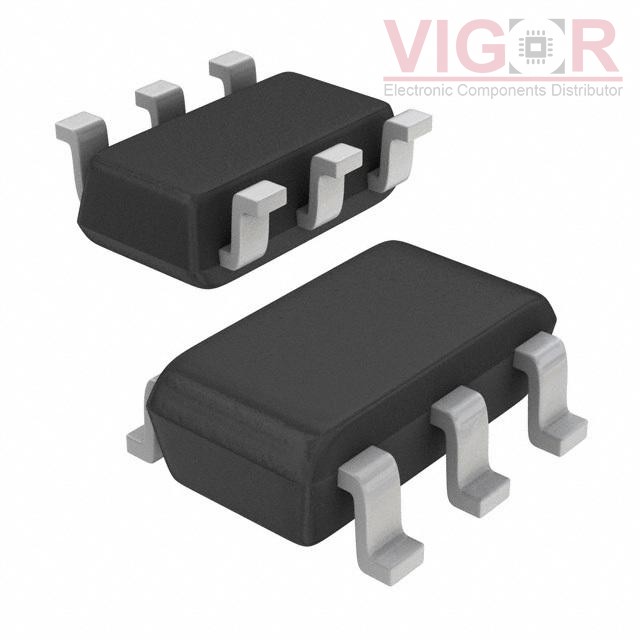

AP3105NAKTR-G1

Part No :: AP3105NAKTR-G1

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4924177

Description: IC PWM CTLR CURR MODE SOT23-6

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: AP3105NAKTR-G1 PDF

Country of origin: -

Date code: -

AP3105NAKTR-G1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Flyback
Voltage - Start Up:	15.5 V
Voltage - Supply (Vcc/Vdd):	10V ~ 25V
Duty Cycle:	75%
Frequency - Switching:	65kHz
Power (Watts):	-
Fault Protection:	Current Limiting, Over Load, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	SOT-23-6
Supplier Device Package:	SOT-23-6
Mounting Type:	Surface Mount
