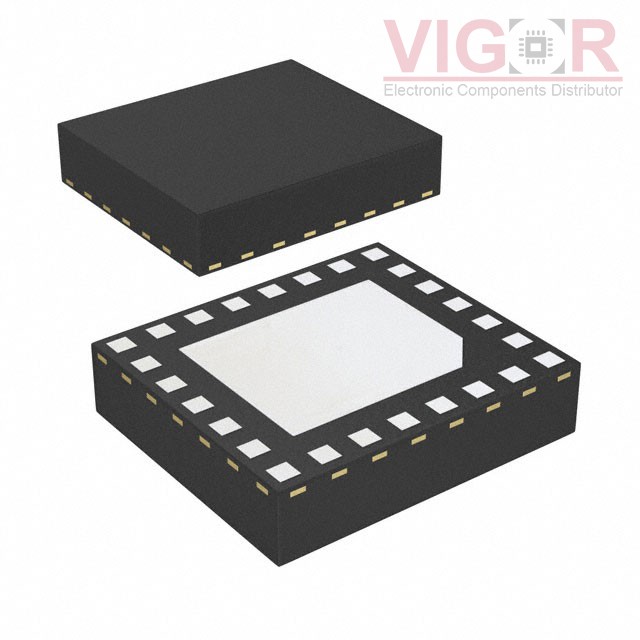

IRSM808-105MH

Part No :: IRSM808-105MH

Manufacturer: IR (Infineon Technologies)

Description: IC MOTOR DRIVER 500V QFN

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: IRSM808-105MH PDF

Availability: 699 pieces

Unit Price: ~~$5.27000~~

Current price of IRSM808-105MH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRSM808-105MH Specifications

Type	Description
Series:	µIPM™
Package:	Tray
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	UMOS
Rds On (Typ):	580mOhm
Current - Output / Channel:	10A
Current - Peak Output:	-
Voltage - Supply:	13.5V ~ 16.5V
Voltage - Load:	400V (Max)
Operating Temperature:	150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Surface Mount
Package / Case:	31-PowerVQFN
Supplier Device Package:	31-PQFN (8x9)

Please confirm the specifications of the products when ordering.
