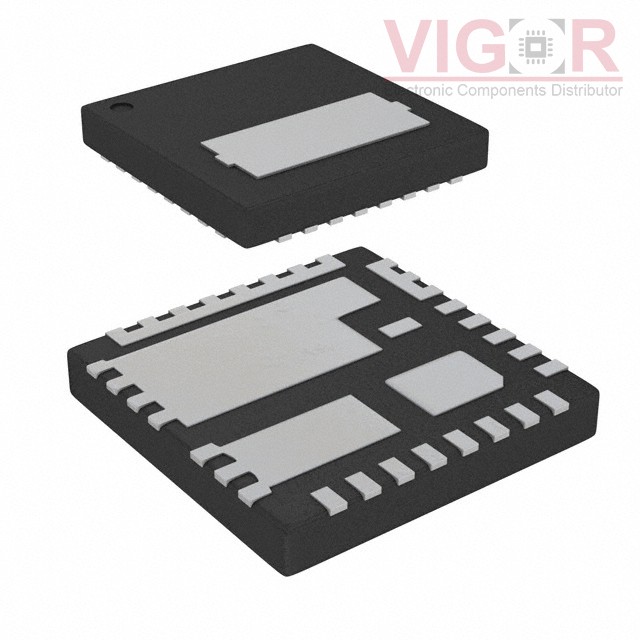

FDMF5823DC

Part No :: FDMF5823DC

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3924328

Description: IC SPS HALF-BRIDGE DRVR 31PQFN

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: FDMF5823DC PDF

Country of origin: -

Date code: -

FDMF5823DC Specifications

Type	Description
Series:	PowerTrench®, SyncFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	UMOS
Rds On (Typ):	470mOhm LS, 680mOhm HS
Current - Output / Channel:	55A
Current - Peak Output:	-
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	4.5V ~ 16V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Bootstrap Circuit, Latch Function, Status Flag
Fault Protection:	Over Temperature, UVLO
Mounting Type:	Surface Mount
Package / Case:	31-PowerWFQFN
Supplier Device Package:	31-PQFN (5x5)

Alternative Products

Part Number	Manufacturer & Description	Compare
FDMF5833-F085 Match 86%	Sanyo Semiconductor/ON Semiconductor IC MOD SPS POWER STAGE 31PQFN	FDMF5823DC vs FDMF5833-F085
FDMF5826DC Match 87%	VIGOR HALF BRIDGE BASED MOSFET DRIVER	FDMF5823DC vs FDMF5826DC
FDMF5821DC Match 87%	Sanyo Semiconductor/ON Semiconductor IC SPS HALF-BRIDGE DRVR 31PQFN	FDMF5823DC vs FDMF5821DC
FDMF5820DC Match 87%	Sanyo Semiconductor/ON Semiconductor IC SPS HALF-BRIDGE DRVR 31PQFN	FDMF5823DC vs FDMF5820DC
FDMF5822DC Match 100%	VIGOR HALF BRIDGE BASED MOSFET DRIVER	FDMF5823DC vs FDMF5822DC
FDMF5821 Match 87%	Sanyo Semiconductor/ON Semiconductor 2MHZ SMART POWER STAGE (SPS)	FDMF5823DC vs FDMF5821
