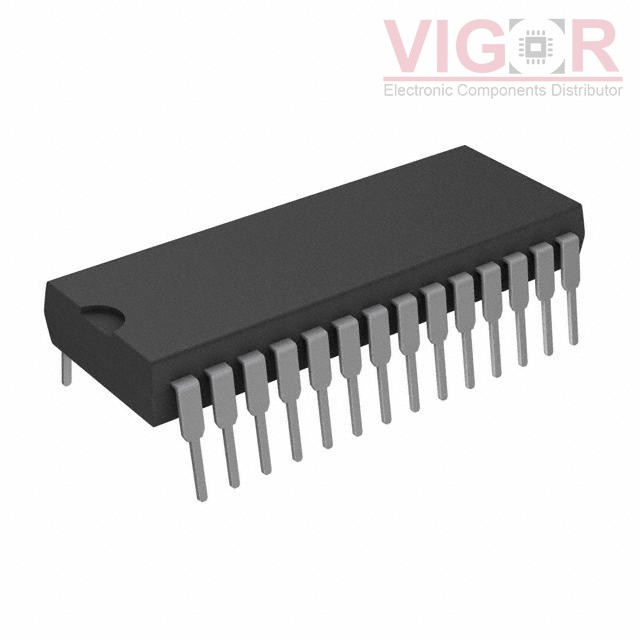

IR2136PBF

Part No :: IR2136PBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3878561

Description: IC GATE DRVR HALF-BRIDGE 28DIP

Catalog: PMIC - Gate Drivers

DataSheet: IR2136PBF PDF

Country of origin: -

Date code: -

IR2136PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 3V
Current - Peak Output (Source, Sink):	200mA, 350mA
Input Type:	Inverting
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	125ns, 50ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	28-DIP (0.600", 15.24mm)
Supplier Device Package:	28-PDIP
