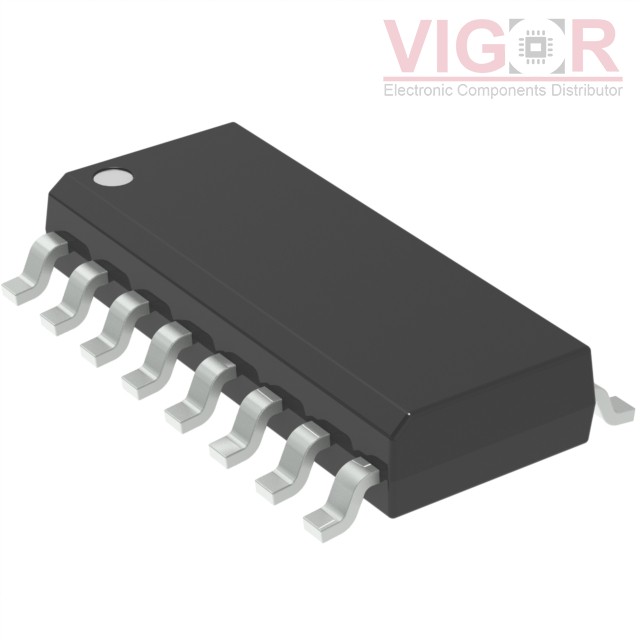

NCD5702DR2G

Part No :: NCD5702DR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3879767

Description: IC GATE DRVR HALF-BRIDGE 16SOIC

Catalog: PMIC - Gate Drivers

DataSheet: NCD5702DR2G PDF

Country of origin: -

Date code: -

NCD5702DR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Single
Number of Drivers:	1
Gate Type:	IGBT
Voltage - Supply:	5.5V
Logic Voltage - VIL, VIH:	0.75V, 4.3V
Current - Peak Output (Source, Sink):	7.8A, 6.8A
Input Type:	Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	9.2ns, 7.9ns
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
