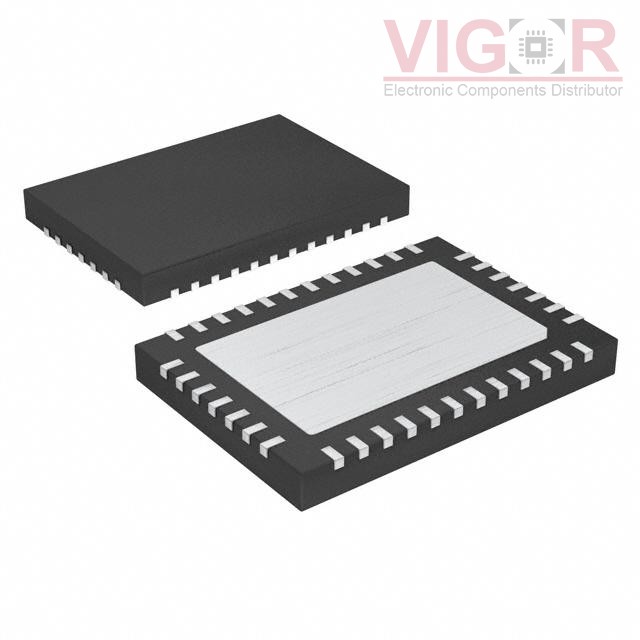

MAX16809ATU+T

Part No :: MAX16809ATU+T

Manufacturer: VIGOR

VIGOR # :: 3920733

Description: INTEGRATED 16-CHANNEL LED DRIVER

Catalog: PMIC - LED Drivers

DataSheet: MAX16809ATU+T PDF

Country of origin: -

Date code: -

MAX16809ATU+T Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Type:	DC DC Controller
Topology:	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):	No
Number of Outputs:	16
Voltage - Supply (Min):	8V
Voltage - Supply (Max):	26.5V
Voltage - Output:	36V
Current - Output / Channel:	55mA
Frequency:	20kHz ~ 1MHz
Dimming:	PWM
Applications:	Backlight, Lighting
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	38-WFQFN Exposed Pad
Supplier Device Package:	38-TQFN (5x7)
