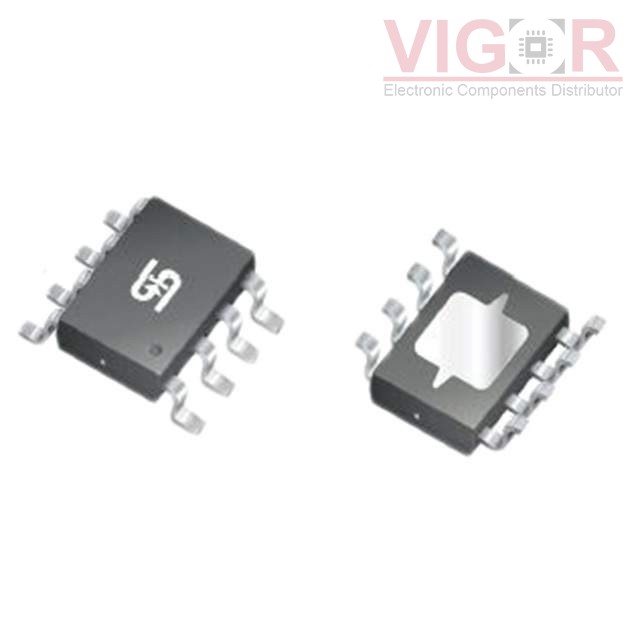

TS19820CS

Part No :: TS19820CS

Manufacturer: TSC (Taiwan Semiconductor)

Description: PWM/LINEAR DIMMABLE CONTROLLER W

Catalog: PMIC - LED Drivers

DataSheet: TS19820CS PDF

Availability: 4878 pieces

Unit Price: ~~$0.91000~~

Current price of TS19820CS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TS19820CS Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	AC DC Offline Switcher
Topology:	Buck
Internal Switch(s):	No
Number of Outputs:	1
Voltage - Supply (Min):	9.5V
Voltage - Supply (Max):	20V
Voltage - Output:	19V
Current - Output / Channel:	-
Frequency:	4.5kHz
Dimming:	PWM
Applications:	LED Lighting
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOP

Please confirm the specifications of the products when ordering.
