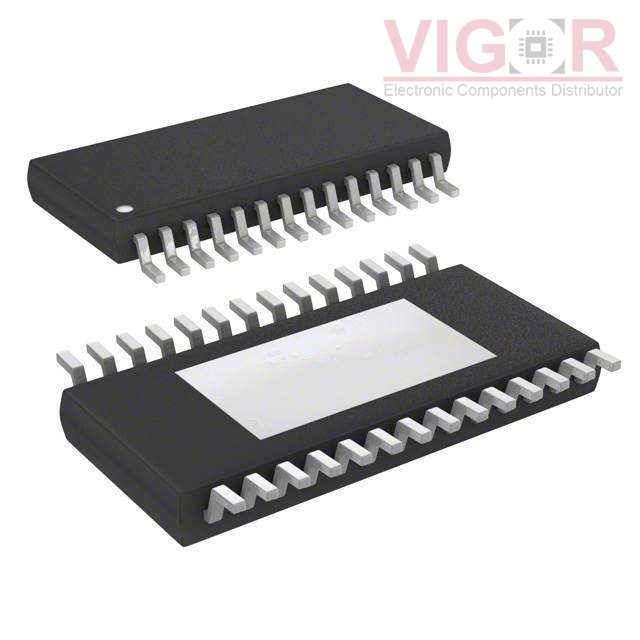

PCA9745BTWJ

Part No :: PCA9745BTWJ

Manufacturer: NXP Semiconductors

VIGOR # :: 3921598

Description: 16-CHANNEL SPI SERIAL BUS 57 MA/

Catalog: PMIC - LED Drivers

DataSheet: PCA9745BTWJ PDF

Country of origin: -

Date code: -

PCA9745BTWJ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	Shift Register
Internal Switch(s):	No
Number of Outputs:	16
Voltage - Supply (Min):	3V
Voltage - Supply (Max):	5.5V
Voltage - Output:	20V
Current - Output / Channel:	57mA
Frequency:	8MHz
Dimming:	SPI
Applications:	Automotive, Backlight
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Surface Mount
Package / Case:	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	28-HTSSOP
