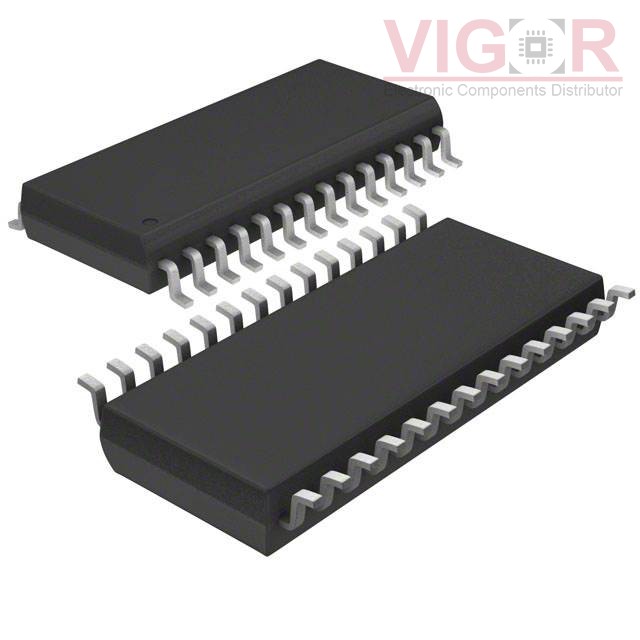

TLC5946PW

Part No :: TLC5946PW

Manufacturer: VIGOR

VIGOR # :: 3921730

Description: TLC5946 16-CHANNEL, 12-BIT PWM L

Catalog: PMIC - LED Drivers

DataSheet: TLC5946PW PDF

Country of origin: -

Date code: -

TLC5946PW Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Linear
Topology:	Shift Register
Internal Switch(s):	Yes
Number of Outputs:	16
Voltage - Supply (Min):	3V
Voltage - Supply (Max):	5.5V
Voltage - Output:	17V
Current - Output / Channel:	40mA
Frequency:	30MHz
Dimming:	-
Applications:	Backlight, Signage
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-TSSOP
