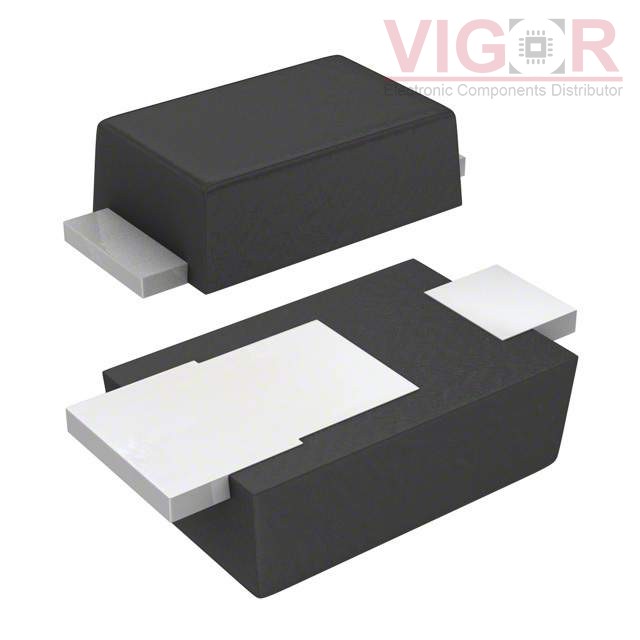

AL5809-15P1-7

Part No :: AL5809-15P1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3921951

Description: IC LED DRVR LIN PWM 15MA PDI12

Catalog: PMIC - LED Drivers

DataSheet: AL5809-15P1-7 PDF

Country of origin: -

Date code: -

AL5809-15P1-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	15mA
Frequency:	-
Dimming:	PWM
Applications:	Signage
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	POWERDI®123
Supplier Device Package:	PowerDI™ 123

Alternative Products

Part Number	Manufacturer & Description	Compare
NCR402TR Match 59%	Nexperia IC LED DRIVER LINEAR TO-236AB	AL5809-15P1-7 vs NCR402TR
CL1N8-G Match 59%	Roving Networks / Microchip Technology IC LED DRIVER LIN 20MA TO243AA	AL5809-15P1-7 vs CL1N8-G
NLSF595DTR2G Match 68%	Sanyo Semiconductor/ON Semiconductor IC LED DRIVER LIN 12MA 16TSSOP	AL5809-15P1-7 vs NLSF595DTR2G
NLSF595MNR2G Match 68%	Sanyo Semiconductor/ON Semiconductor IC LED DRIVER LINEAR 12MA 16QFN	AL5809-15P1-7 vs NLSF595MNR2G
AL5809-15S1-7 Match 100%	Zetex Semiconductors (Diodes Inc.) IC LED DRVR LIN PWM 15MA SOD123	AL5809-15P1-7 vs AL5809-15S1-7
IS32LT3123-ZLA3-TR Match 74%	Lumissil Microsystems IC 4-CH 40V HIGH CURRENT LED DRI	AL5809-15P1-7 vs IS32LT3123-ZLA3-TR
