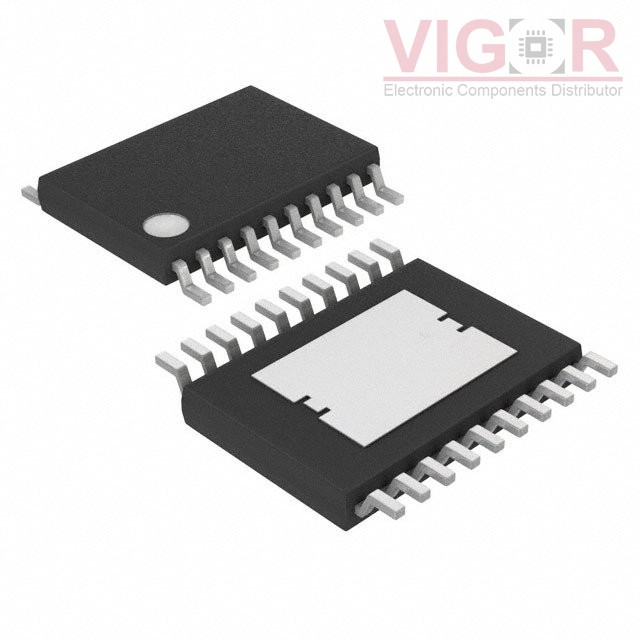

MAX16814CAUP+T

Part No :: MAX16814CAUP+T

Manufacturer: Maxim Integrated

VIGOR # :: 3922050

Description: IC LED DVR 4CH DC-DC 20TSSOP

Catalog: PMIC - LED Drivers

DataSheet: MAX16814CAUP+T PDF

Country of origin: -

Date code: -

MAX16814CAUP+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	DC DC Controller
Topology:	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):	No
Number of Outputs:	4
Voltage - Supply (Min):	4.75V
Voltage - Supply (Max):	40V
Voltage - Output:	-
Current - Output / Channel:	150mA
Frequency:	200kHz ~ 2MHz
Dimming:	PWM
Applications:	Backlight, Lighting
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-TSSOP-EP

Alternative Products

Part Number	Manufacturer & Description	Compare
LP8866SQDCPRQ1 Match 100%	Texas Instruments AUTOMOTIVE DISPLAY LED-BACKLIGHT	MAX16814CAUP+T vs LP8866SQDCPRQ1
LP8860JQVFPRQ1 Match 100%	Texas Instruments IC LED DRIVER 4CH 32HLQFP	MAX16814CAUP+T vs LP8860JQVFPRQ1
LP8860NQVFPRQ1 Match 100%	Texas Instruments 4-CHANNEL LED DRIVE	MAX16814CAUP+T vs LP8860NQVFPRQ1
A8513KLYTR-T Match 100%	Allegro MicroSystems IC LED DRIVER RGLTR DIM 10MSOP	MAX16814CAUP+T vs A8513KLYTR-T
MAX16813ATP/V+ Match 100%	Maxim Integrated IC LED DRIVER CTRLR DIM 20TQFN	MAX16814CAUP+T vs MAX16813ATP/V+
MAX16813AUP/V+T Match 100%	Maxim Integrated IC LED DRIVER CTRLR DIM 20TSSOP	MAX16814CAUP+T vs MAX16813AUP/V+T
