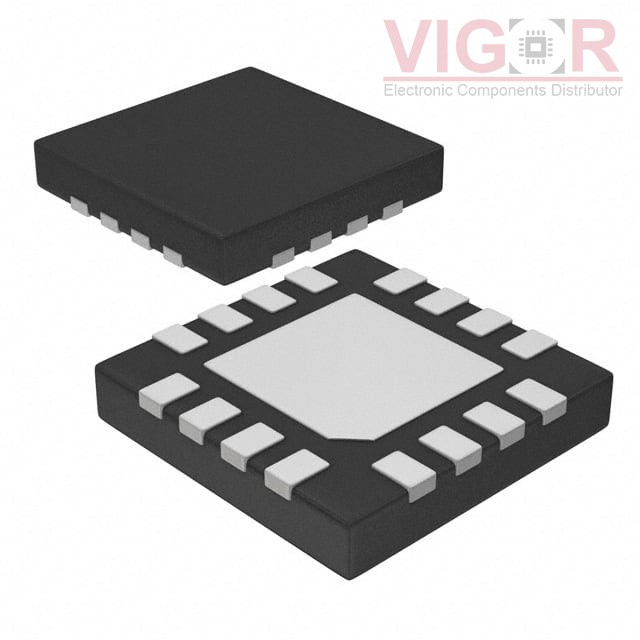

FAN5701UMP15X

Part No :: FAN5701UMP15X

Manufacturer: VIGOR

VIGOR # :: 3922054

Description: 6-LED DRIVER W/PWM DIMMING INTER

Catalog: PMIC - LED Drivers

DataSheet: FAN5701UMP15X PDF

Country of origin: -

Date code: -

FAN5701UMP15X Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	DC DC Regulator
Topology:	Switched Capacitor (Charge Pump)
Internal Switch(s):	Yes
Number of Outputs:	6
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	5.5V
Voltage - Output:	-
Current - Output / Channel:	15mA
Frequency:	1.2MHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-UFQFN Exposed Pad
Supplier Device Package:	16-UMLP (3x3)
