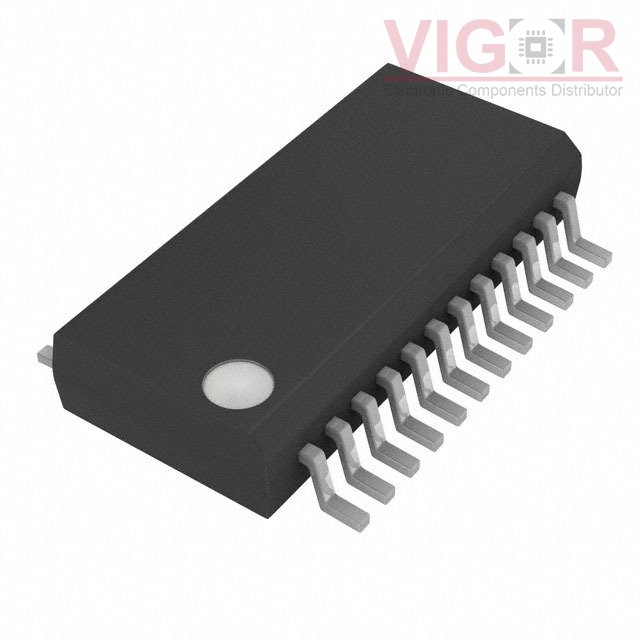

TLC5949DBQR

Part No :: TLC5949DBQR

Manufacturer: VIGOR

VIGOR # :: 3922258

Description: TLC5949 16-CHANNEL, 12-BIT ES-PW

Catalog: PMIC - LED Drivers

DataSheet: TLC5949DBQR PDF

Country of origin: -

Date code: -

TLC5949DBQR Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Linear
Topology:	Shift Register
Internal Switch(s):	Yes
Number of Outputs:	16
Voltage - Supply (Min):	3V
Voltage - Supply (Max):	3.6V
Voltage - Output:	10V
Current - Output / Channel:	45mA
Frequency:	33MHz
Dimming:	PWM
Applications:	Signage
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	24-SSOP/QSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
TLC5949PWPR Match 100%	VIGOR TLC5949 16-CHANNEL, 12-BIT ES-PW	TLC5949DBQR vs TLC5949PWPR
TLC5949PWP Match 100%	VIGOR TLC5949 16-CHANNEL, 12-BIT ES-PW	TLC5949DBQR vs TLC5949PWP
TLC59282RGER Match 95%	Texas Instruments IC LED DRIVER LINEAR 45MA 24VQFN	TLC5949DBQR vs TLC59282RGER
TLC59283RGER Match 95%	VIGOR TLC59283 16 CHANNEL CONSTANT CUR	TLC5949DBQR vs TLC59283RGER
TLC59283RGET Match 95%	Texas Instruments IC LED DRIVER LINEAR 45MA 24VQFN	TLC5949DBQR vs TLC59283RGET
TLC59283DBQR Match 95%	Texas Instruments IC LED DRIVER LINEAR 45MA 24SSOP	TLC5949DBQR vs TLC59283DBQR
