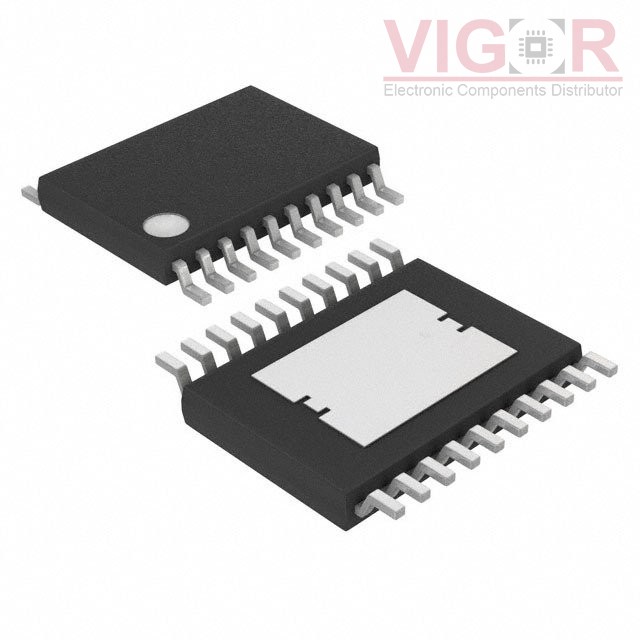

MAX16814BEUP+T

Part No :: MAX16814BEUP+T

Manufacturer: Maxim Integrated

VIGOR # :: 3922665

Description: IC LED DRIVER CTRLR DIM 20TSSOP

Catalog: PMIC - LED Drivers

DataSheet: MAX16814BEUP+T PDF

Country of origin: Confirming

Date code: TBC

MAX16814BEUP+T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	DC DC Controller
Topology:	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):	No
Number of Outputs:	4
Voltage - Supply (Min):	4.75V
Voltage - Supply (Max):	40V
Voltage - Output:	-
Current - Output / Channel:	150mA
Frequency:	200kHz ~ 2MHz
Dimming:	PWM
Applications:	Backlight, Lighting
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-TSSOP-EP

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX16838AUP/V+ Match 100%	Maxim Integrated IC LED DRIVER RGLTR DIM 20TSSOP	MAX16814BEUP+T vs MAX16838AUP/V+
MP3367GR-Z Match 100%	MPS (Monolithic Power Systems) 6-CHANNEL, MAX.150MA/CH BOOST WL	MAX16814BEUP+T vs MP3367GR-Z
LP8860BQVFPRQ1 Match 100%	Texas Instruments IC LED DRIVER 4CH 32HLQFP	MAX16814BEUP+T vs LP8860BQVFPRQ1
MAX16814ATP+ Match 100%	Maxim Integrated IC LED DRIVER CTRLR DIM 20TQFN	MAX16814BEUP+T vs MAX16814ATP+
MAX16813BATP/V+ Match 100%	Maxim Integrated IC 4CH HB LED DRIVER 20TQFN	MAX16814BEUP+T vs MAX16813BATP/V+
LP8864SQDCPRQ1 Match 100%	Texas Instruments AUTOMOTIVE DISPLAY LED-BACKLIGHT	MAX16814BEUP+T vs LP8864SQDCPRQ1
