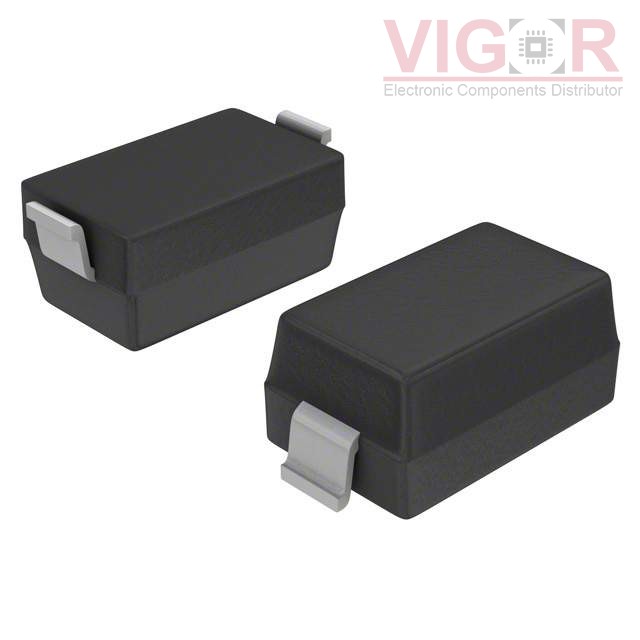

AL5809-30S1-7

Part No :: AL5809-30S1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3922788

Description: IC LED DRVR LIN PWM 30MA SOD123

Catalog: PMIC - LED Drivers

DataSheet: AL5809-30S1-7 PDF

Country of origin: -

Date code: -

AL5809-30S1-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	30mA
Frequency:	-
Dimming:	PWM
Applications:	Signage
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SOD-123
Supplier Device Package:	SOD-123

Alternative Products

Part Number	Manufacturer & Description	Compare
IS32LT3128A-ZLA3-TR Match 100%	Lumissil Microsystems IC AEC-Q100 3-CH LINEAR LED DRIV	AL5809-30S1-7 vs IS32LT3128A-ZLA3-TR
MIC2860-2DYD6-TR Match 99%	Roving Networks / Microchip Technology IC LED DRIVER LIN DIM TSOT23-6	AL5809-30S1-7 vs MIC2860-2DYD6-TR
AL5809-30P1-7 Match 100%	Zetex Semiconductors (Diodes Inc.) IC LED DRVR LIN PWM 30MA PDI12	AL5809-30S1-7 vs AL5809-30P1-7
MIC5400YWM-TR Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR 30MA 28SOIC	AL5809-30S1-7 vs MIC5400YWM-TR
MIC5400YWM Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR 30MA 28SOIC	AL5809-30S1-7 vs MIC5400YWM
ISL98611IIZ-T Match 100%	Intersil (Renesas Electronics America) IC LED DRIVER 12V FET 30WLCSP	AL5809-30S1-7 vs ISL98611IIZ-T
