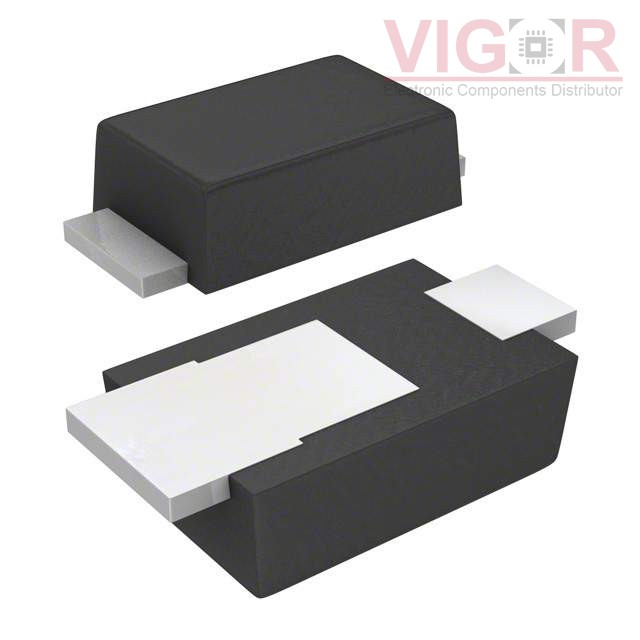

AL5809-20QP1-7

Part No :: AL5809-20QP1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3923019

Description: IC LED DRVR LIN PWM 20MA PDI123

Catalog: PMIC - LED Drivers

DataSheet: AL5809-20QP1-7 PDF

Country of origin: -

Date code: -

AL5809-20QP1-7 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	20mA
Frequency:	-
Dimming:	PWM
Applications:	Automotive
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	POWERDI®123
Supplier Device Package:	PowerDI™ 123

Alternative Products

Part Number	Manufacturer & Description	Compare
STLD40DPUR Match 100%	STMicroelectronics IC LED DRVR RGLTR DIM 20MA 8QFN	AL5809-20QP1-7 vs STLD40DPUR
CL520N3-G Match 100%	Roving Networks / Microchip Technology IC LED DRIVER LINEAR 20MA TO92-3	AL5809-20QP1-7 vs CL520N3-G
MAX6966ATE+ Match 100%	Maxim Integrated IC LED DRIVER LINEAR 20MA 16TQFN	AL5809-20QP1-7 vs MAX6966ATE+
NCR402UX Match 100%	Nexperia IC LED DRIVER LINEAR 20MA 6TSOP	AL5809-20QP1-7 vs NCR402UX
MAX6966AEE+ Match 100%	Maxim Integrated IC LED DRIVER LINEAR 20MA 16QSOP	AL5809-20QP1-7 vs MAX6966AEE+
AL5890-20D-13 Match 100%	Zetex Semiconductors (Diodes Inc.) LED LINEAR DRIVER,TO252,T&R,2.5K	AL5809-20QP1-7 vs AL5890-20D-13
