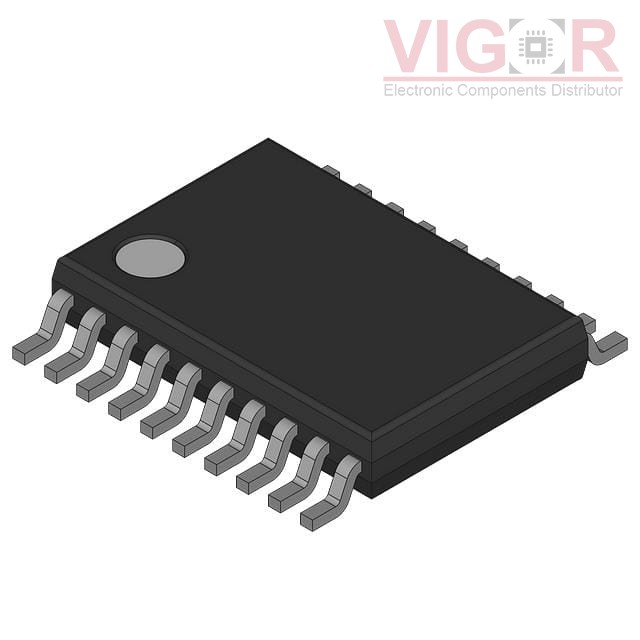

MAX16814UUP+T

Part No :: MAX16814UUP+T

Manufacturer: VIGOR

VIGOR # :: 3923181

Description: MAX1681 125 MA, FREQUENCY-SELECT

Catalog: PMIC - LED Drivers

DataSheet: MAX16814UUP+T PDF

Country of origin: -

Date code: -

MAX16814UUP+T Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	DC DC Controller
Topology:	SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s):	No
Number of Outputs:	4
Voltage - Supply (Min):	4.75V
Voltage - Supply (Max):	40V
Voltage - Output:	-
Current - Output / Channel:	150mA
Frequency:	200kHz ~ 2MHz
Dimming:	PWM
Applications:	Backlight, Lighting
Operating Temperature:	0°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-TSSOP-EP

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX16814ATP/V+ Match 100%	Maxim Integrated IC LED DRIVER CTRLR DIM 20TQFN	MAX16814UUP+T vs MAX16814ATP/V+
LTC3218EDDB#TRMPBF Match 100%	Linear Technology (Analog Devices, Inc.) IC LED DRIVER RGLTR 150MA 10DFN	MAX16814UUP+T vs LTC3218EDDB#TRMPBF
MAX16838ATP+ Match 100%	Maxim Integrated IC LED DRIVER RGLTR DIM 20TQFN	MAX16814UUP+T vs MAX16838ATP+
MAX16814BUTP+T Match 100%	Maxim Integrated INTEGRATED, 4-CHANNEL, HIGH-BRIG	MAX16814UUP+T vs MAX16814BUTP+T
MAX16813ATP/V+T Match 100%	Maxim Integrated IC LED DRIVER CTRLR DIM 20TQFN	MAX16814UUP+T vs MAX16813ATP/V+T
MAX25024ATG/VY+ Match 100%	Maxim Integrated AUTO LOW INPUT VOLT I2C 4CH	MAX16814UUP+T vs MAX25024ATG/VY+
