LV52204MTTBG

Part No :: LV52204MTTBG

Manufacturer: VIGOR

Description: LED BOOST DRIVER WITH PWM AND 1-

Catalog: PMIC - LED Drivers

DataSheet: LV52204MTTBG PDF

Availability: 96000 pieces

Unit Price: ~~$0.23000~~

Current price of LV52204MTTBG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LV52204MTTBG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	5.5V
Voltage - Output:	-
Current - Output / Channel:	700mA (Switch)
Frequency:	600kHz
Dimming:	PWM, Single-Wire
Applications:	Backlight
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount

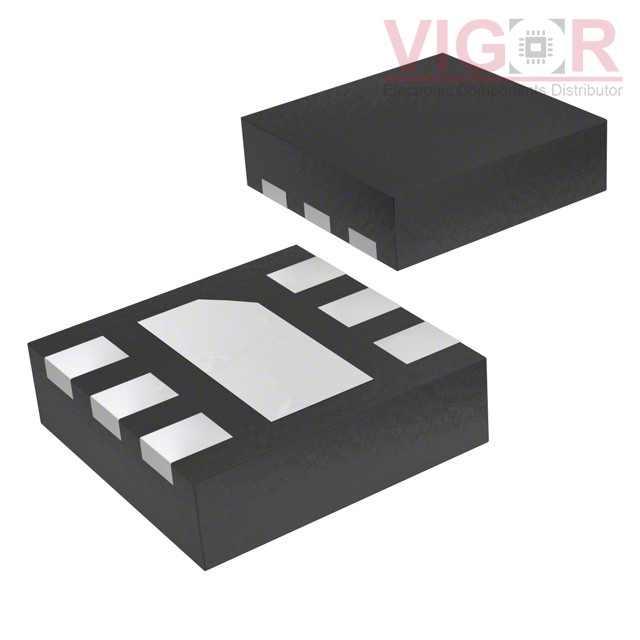

Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WDFN (2x2)
