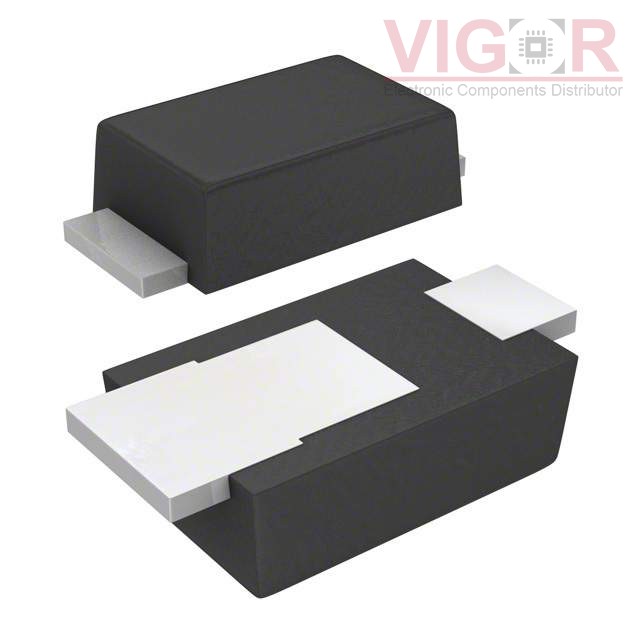

AL5809-30QP1-7

Part No :: AL5809-30QP1-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 3923697

Description: IC LED DRVR LIN PWM 30MA PDI12

Catalog: PMIC - LED Drivers

DataSheet: AL5809-30QP1-7 PDF

Country of origin: -

Date code: -

AL5809-30QP1-7 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Linear
Topology:	-
Internal Switch(s):	Yes
Number of Outputs:	1
Voltage - Supply (Min):	2.5V
Voltage - Supply (Max):	60V
Voltage - Output:	60V
Current - Output / Channel:	30mA
Frequency:	-
Dimming:	PWM
Applications:	Automotive
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	POWERDI®123
Supplier Device Package:	PowerDI™ 123
