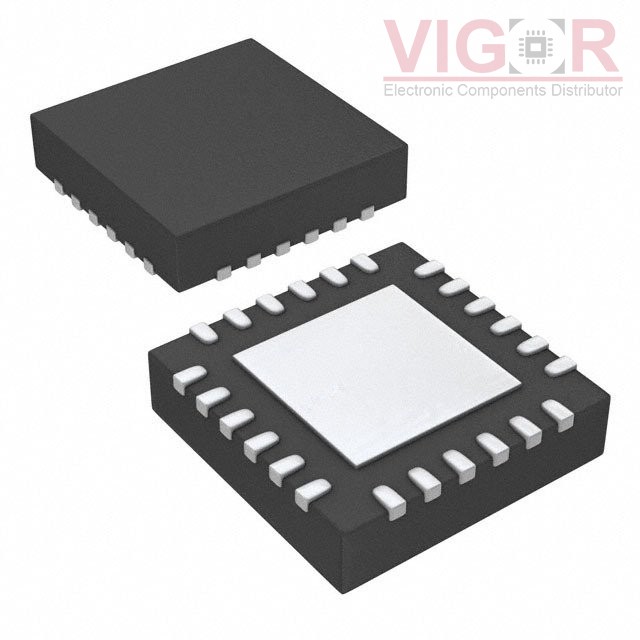

LP8543SQ

Part No :: LP8543SQ

Manufacturer: Texas Instruments

VIGOR # :: 4920317

Description: IC LED DRIVER RGLTR DIM 24WQFN

Catalog: PMIC - LED Drivers

DataSheet: LP8543SQ PDF

Country of origin: -

Date code: -

LP8543SQ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	7
Voltage - Supply (Min):	5.5V
Voltage - Supply (Max):	22V
Voltage - Output:	40V
Current - Output / Channel:	60mA
Frequency:	625kHz ~ 1.25MHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-WFQFN Exposed Pad
Supplier Device Package:	24-WQFN (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
ISL97634IRT14Z-TK Match 78%	Intersil (Renesas Electronics America) IC LED DRVR RGLTR DIM 70MA 8TDFN	LP8543SQ vs ISL97634IRT14Z-TK
TPS61199NSR Match 78%	Texas Instruments IC LED DRVR CTRLR DIM 70MA 20SO	LP8543SQ vs TPS61199NSR
TPS61199PWP Match 78%	Texas Instruments IC LED DRIVER CTRLR DIM 20HTSSOP	LP8543SQ vs TPS61199PWP
PCA9959HNMP Match 93%	NXP Semiconductors 24-CH CC LED DRIVER HVQFN40	LP8543SQ vs PCA9959HNMP
STP1612PW05TTR Match 100%	STMicroelectronics IC LED DRVR LIN DIM 60MA 24TSSOP	LP8543SQ vs STP1612PW05TTR
TLC5944RHBR Match 100%	Texas Instruments IC LED DRIVER LINEAR 60MA 32VQFN	LP8543SQ vs TLC5944RHBR
