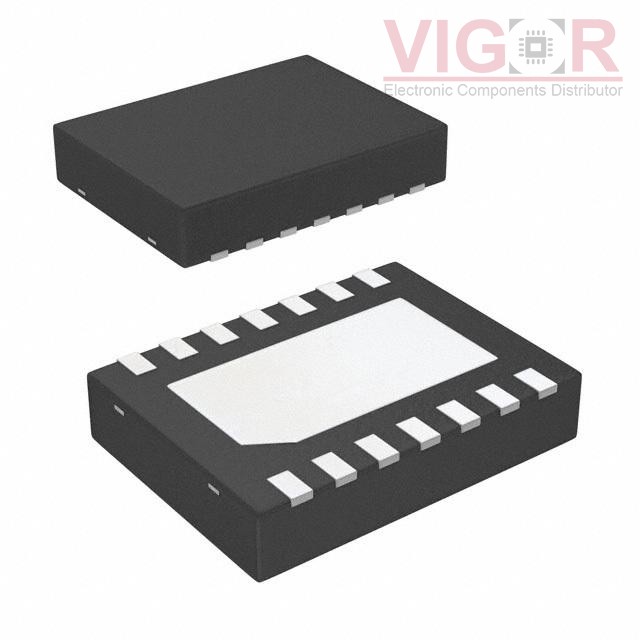

LM3520SDX/NOPB

Part No :: LM3520SDX/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4920330

Description: IC LED DRIVER RGLTR DIM 14WSON

Catalog: PMIC - LED Drivers

DataSheet: LM3520SDX/NOPB PDF

Country of origin: -

Date code: -

LM3520SDX/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Discontinued at Digi-Key
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	2
Voltage - Supply (Min):	2.7V
Voltage - Supply (Max):	5.5V
Voltage - Output:	22.5V ~ 23.2V
Current - Output / Channel:	700mA (Switch)
Frequency:	1.1MHz
Dimming:	PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	14-WFDFN Exposed Pad
Supplier Device Package:	14-WSON (4x3)
