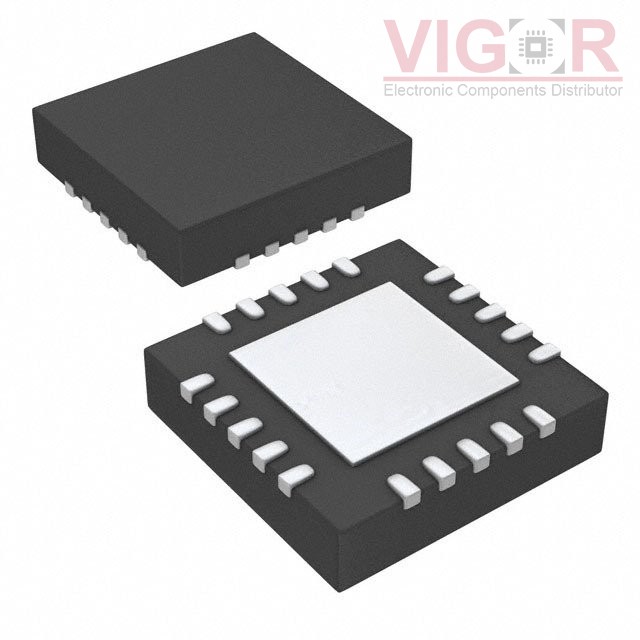

RT8560GQW

Part No :: RT8560GQW

Manufacturer: Richtek

VIGOR # :: 4920740

Description: IC LED DRIVER RGLTR DIM 20WQFN

Catalog: PMIC - LED Drivers

DataSheet: RT8560GQW PDF

Country of origin: -

Date code: -

RT8560GQW Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Type:	DC DC Regulator
Topology:	Step-Up (Boost)
Internal Switch(s):	Yes
Number of Outputs:	4
Voltage - Supply (Min):	7V
Voltage - Supply (Max):	40V
Voltage - Output:	60V
Current - Output / Channel:	30mA
Frequency:	1MHz
Dimming:	Analog, PWM
Applications:	Backlight
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad
Supplier Device Package:	20-WQFN (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
MSL1064-TC Match 92%	Roving Networks / Microchip Technology IC LED DRIVER RGLTR DIM 24TQFN	RT8560GQW vs MSL1064-TC
MAX1575ETE+TG104 Match 100%	Maxim Integrated IC LED DRVR WHITE BCKLGT 16-TQFN	RT8560GQW vs MAX1575ETE+TG104
MAX17105ETG+C9U Match 100%	Maxim Integrated IC LED DRIVER REG DIM 24TQFN	RT8560GQW vs MAX17105ETG+C9U
NCP5623MUTBG Match 100%	Sanyo Semiconductor/ON Semiconductor IC LED DRIVER RGLTR 30MA 12LLGA	RT8560GQW vs NCP5623MUTBG
MSL1061AV-R Match 92%	Roving Networks / Microchip Technology IC LED DRIVER RGLTR DIM 28TQFN	RT8560GQW vs MSL1061AV-R
SC5010HULTRT-01 Match 100%	Semtech IC LED DRIVER 8CH HI EFF 28QFN	RT8560GQW vs SC5010HULTRT-01
