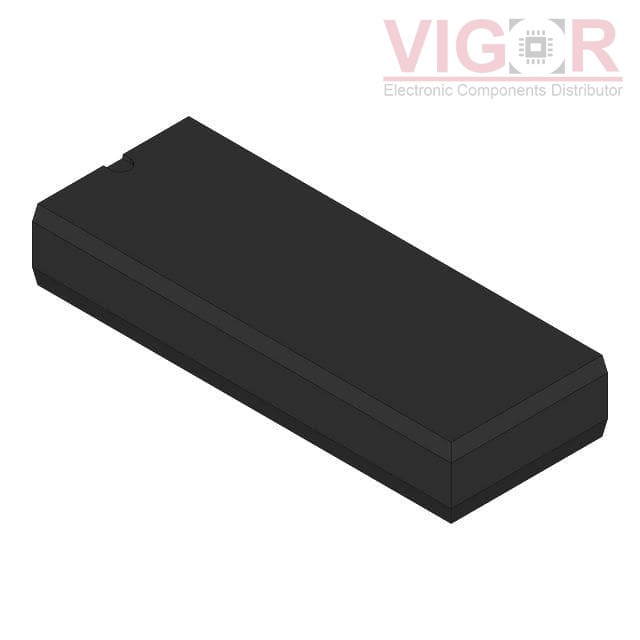

LB1946-E

Part No :: LB1946-E

Manufacturer: VIGOR

VIGOR # :: 3917567

Description: MOTOR DRIVER IC

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LB1946-E PDF

Country of origin: -

Date code: -

LB1946-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel, Serial
Technology:	Bipolar
Step Resolution:	-
Applications:	General Purpose
Current - Output:	1.5A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	10V ~ 45V
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	28-SDIP (0.500", 12.70mm) Exposed Pad
Supplier Device Package:	28-HDIP

Alternative Products

Part Number	Manufacturer & Description	Compare
LB11847-E Match 100%	VIGOR MOTION CONTROL ELECTRONIC	LB1946-E vs LB11847-E
LB1845-E Match 100%	VIGOR MOTION CONTROL ELECTRONIC	LB1946-E vs LB1845-E
LB11847L-E Match 100%	VIGOR MOTOR DRIVER IC	LB1946-E vs LB11847L-E
LB1847-E Match 100%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER BIPOLAR 28HDIP	LB1946-E vs LB1847-E
