BD63565EFV-E2

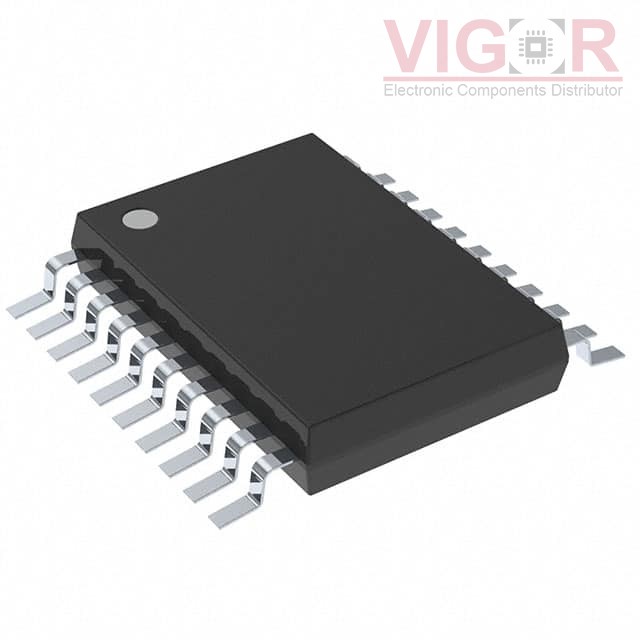

Image is for reference,
please contact us to get the real picture

Part No :: BD63565EFV-E2

Manufacturer: ROHM Semiconductor

Description: DUAL H-BRIDGE MOTOR DRIVER WHICH

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: BD63565EFV-E2 PDF

Availability: 2202 pieces

Unit Price: ~~$2.74000~~

Current price of BD63565EFV-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BD63565EFV-E2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	-
Motor Type - AC, DC:	Brushed DC
Function:	Driver
Output Configuration:	Pre-Driver - Half Bridge (2)
Interface:	PWM
Technology:	DMOS
Step Resolution:	-
Applications:	Appliance
Current - Output:	1A
Voltage - Supply:	2.5V ~ 5.5V
Voltage - Load:	1.8V ~ 16V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	20-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-HTSSOP-B
