TB67S249FTG,EL

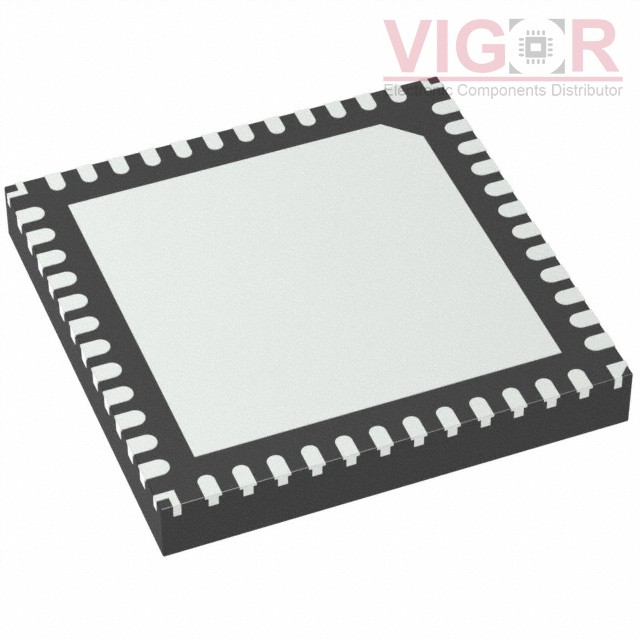

Image is for reference,
please contact us to get the real picture

Part No :: TB67S249FTG,EL

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: IC MOTOR DRIVER BIPOLAR 48VQFN

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB67S249FTG,EL PDF

Availability: 2344 pieces

Unit Price: ~~$5.62000~~

Current price of TB67S249FTG,EL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TB67S249FTG,EL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (8)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2, 1/4, 1/8, 1/16, 1/32
Applications:	General Purpose
Current - Output:	4.5A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	10V ~ 47V
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	48-VFQFN Exposed Pad
Supplier Device Package:	48-VQFN (7x7)
