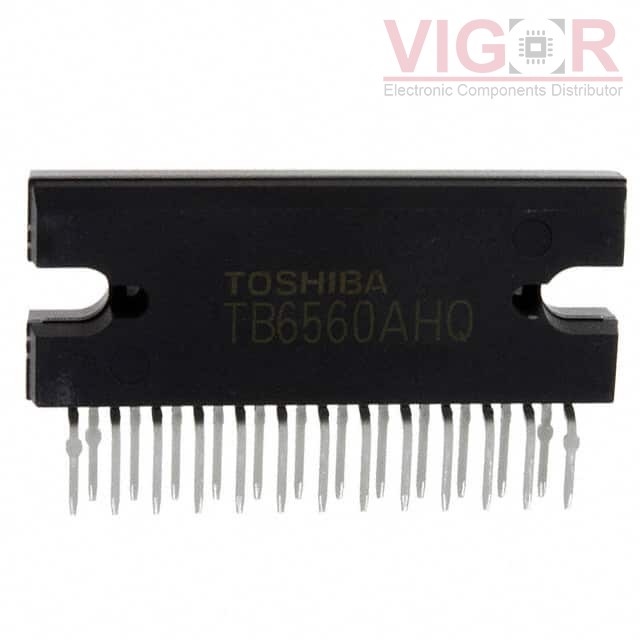

TB6560AHQ,8

Part No :: TB6560AHQ,8

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 3917921

Description: IC MTR DRV BIPLR 4.5-5.5V 25HZIP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB6560AHQ,8 PDF

Country of origin: -

Date code: -

TB6560AHQ,8 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2, 1/4, 1/8, 1/16
Applications:	General Purpose
Current - Output:	3A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	4.5V ~ 34V
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	25-SIP Formed Leads
Supplier Device Package:	25-HZIP
