LB11693H-TLM-E

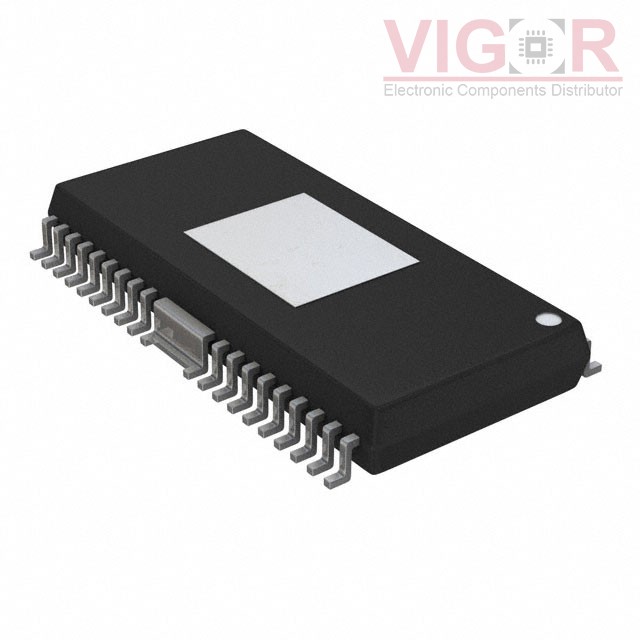

Image is for reference,
please contact us to get the real picture

Part No :: LB11693H-TLM-E

Manufacturer: VIGOR

Description: BRUSHLESS DC MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LB11693H-TLM-E PDF

Availability: 390 pieces

Unit Price: ~~$2.60000~~

Current price of LB11693H-TLM-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LB11693H-TLM-E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Motor Type - Stepper:	-
Motor Type - AC, DC:	Brushless DC (BLDC)
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (3)
Interface:	PWM
Technology:	-
Step Resolution:	-
Applications:	General Purpose
Current - Output:	1.8A
Voltage - Supply:	9.5V ~ 28V
Voltage - Load:	9.5V ~ 28V
Operating Temperature:	-30°C ~ 100°C (TA)
Mounting Type:	Surface Mount
Package / Case:	36-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs
Supplier Device Package:	36-HSOP-R
