TB62206FG,EL

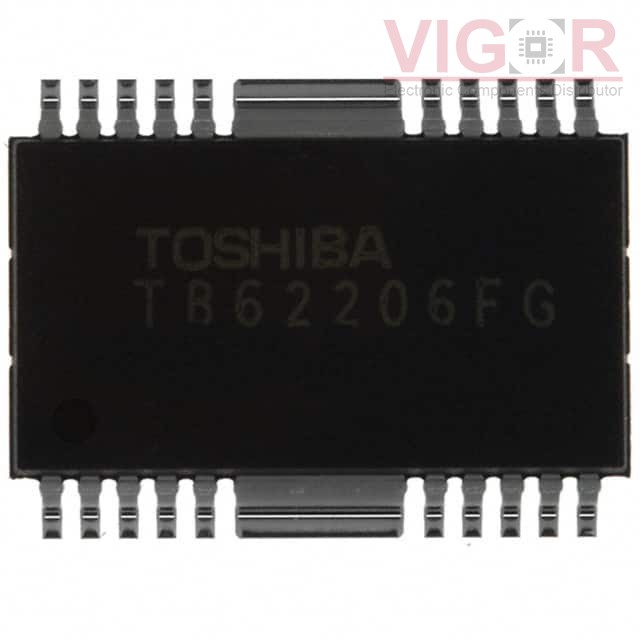

Image is for reference,
please contact us to get the real picture

Part No :: TB62206FG,EL

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: IC MTR DRV BIPLR 4.5-5.5V 20HSOP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB62206FG,EL PDF

Availability: 59 pieces

Unit Price: ~~$3.01000~~

Current price of TB62206FG,EL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TB62206FG,EL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	DMOS
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	1.5A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	13V ~ 35V
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package:	20-HSOP
