BD6393FP-E2

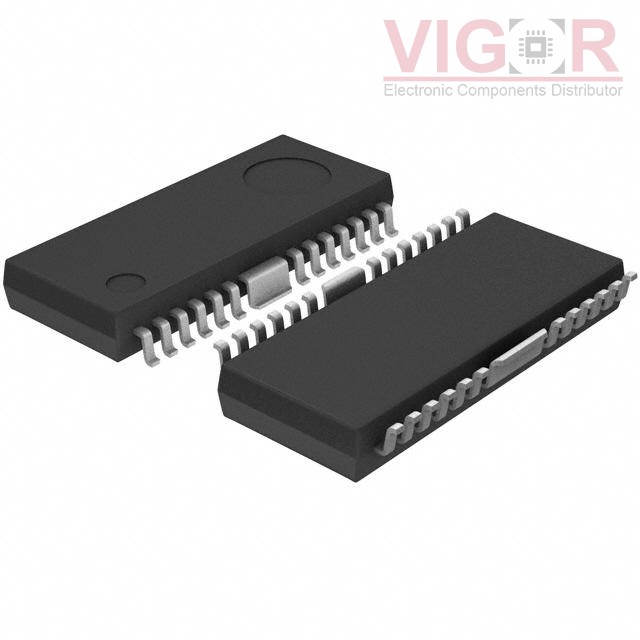

Image is for reference,
please contact us to get the real picture

Part No :: BD6393FP-E2

Manufacturer: ROHM Semiconductor

Description: IC MTR DRV BIPOLAR 16-28V 25HSOP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: BD6393FP-E2 PDF

Availability: 1139 pieces

Unit Price: ~~$5.53000~~

Current price of BD6393FP-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BD6393FP-E2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	DMOS
Step Resolution:	1, 1/2, 1/4
Applications:	General Purpose
Current - Output:	800mA
Voltage - Supply:	16V ~ 28V
Voltage - Load:	16V ~ 28V
Operating Temperature:	-25°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs
Supplier Device Package:	25-HSOP

Please confirm the specifications of the products when ordering.
