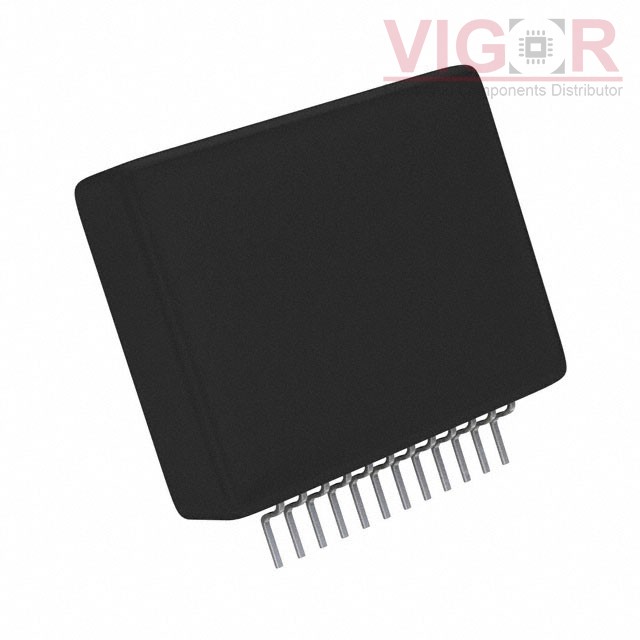

STK672-530

Part No :: STK672-530

Manufacturer: VIGOR

VIGOR # :: 3919142

Description: TWO PHASE, STEPPING MOTOR DRIVER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: STK672-530 PDF

Country of origin: -

Date code: -

STK672-530 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Unipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	2.2A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	10V ~ 42V
Operating Temperature:	0°C ~ 105°C (TC)
Mounting Type:	Through Hole
Package / Case:	12-SIP
Supplier Device Package:	12-SIP

Alternative Products

Part Number	Manufacturer & Description	Compare
STK672-340-E Match 70%	VIGOR STEPPER MOTOR CONTROLLER	STK672-530 vs STK672-340-E
STK672-110-SL-E Match 93%	VIGOR 2-PHASE STEPPING MOTOR DRIVER	STK672-530 vs STK672-110-SL-E
STK672-110-E Match 93%	VIGOR STEPPER MOTOR CONTROLLER	STK672-530 vs STK672-110-E
STK672-220-E Match 55%	VIGOR STEPPER MOTOR CONTROLLER	STK672-530 vs STK672-220-E
STK672-533-E Match 100%	VIGOR STEPPER MOTOR CONTROLLER	STK672-530 vs STK672-533-E
STK672-532 Match 100%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 12SIP	STK672-530 vs STK672-532
