LV8736V-MPB-H

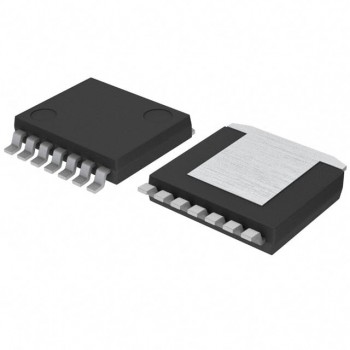

Image is for reference,
please contact us to get the real picture

Part No :: LV8736V-MPB-H

Manufacturer: VIGOR

Description: STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LV8736V-MPB-H PDF

Availability: 720 pieces

Unit Price: ~~$1.13000~~

Current price of LV8736V-MPB-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LV8736V-MPB-H Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	Brushed DC
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	BiCDMOS
Step Resolution:	1, 1/2, 1/4, 1/8
Applications:	General Purpose
Current - Output:	1A
Voltage - Supply:	0V ~ 5.5V
Voltage - Load:	9V ~ 32V
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	44-LSSOP (0.220", 5.60mm Width) Exposed Pad
Supplier Device Package:	44-SSOPK
