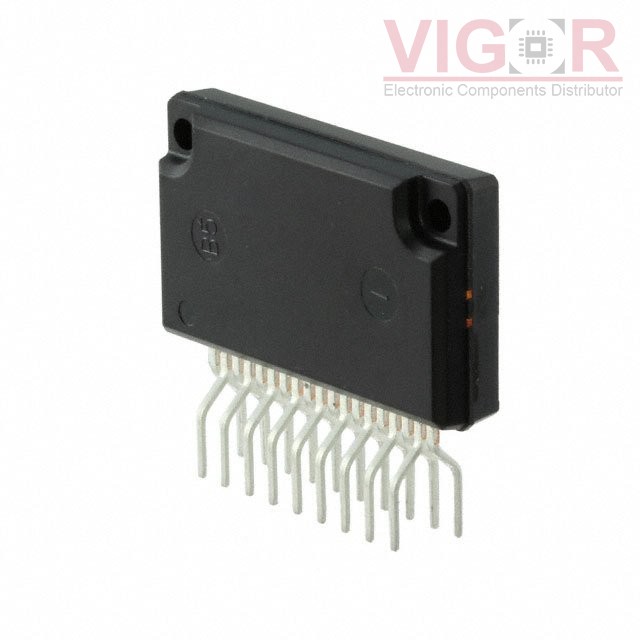

STK672-442B-E

Part No :: STK672-442B-E

Manufacturer: VIGOR

VIGOR # :: 3919306

Description: STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: STK672-442B-E PDF

Country of origin: -

Date code: -

STK672-442B-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Motor Type - Stepper:	Unipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	Parallel
Technology:	Power MOSFET
Step Resolution:	1, 1/2, 1/4, 1/8, 1/16
Applications:	General Purpose
Current - Output:	3A
Voltage - Supply:	4.75V ~ 5.25V
Voltage - Load:	0V ~ 46V
Operating Temperature:	-20°C ~ 105°C (TC)
Mounting Type:	Through Hole
Package / Case:	19-SSIP Formed Leads
Supplier Device Package:	19-SIP

Alternative Products

Part Number	Manufacturer & Description	Compare
STK672-640CN-E Match 59%	VIGOR STEPPER MOTOR CONTROLLER, 20A, H	STK672-442B-E vs STK672-640CN-E
STK672-740B-E Match 86%	VIGOR TWO PHASE, STEPPING MOTOR DRIVER	STK672-442B-E vs STK672-740B-E
STK672-410 Match 100%	VIGOR STEPPER MOTOR CONTROLLER	STK672-442B-E vs STK672-410
STK672-410C-E Match 100%	VIGOR STEPPER MOTOR CONTROLLER	STK672-442B-E vs STK672-410C-E
STK672-640C-E Match 86%	Sanyo Semiconductor/ON Semiconductor IC MOTOR DRIVER UNIPOLAR 19SIP	STK672-442B-E vs STK672-640C-E
STK681-310N-E Match 51%	VIGOR BRUSH DC MOTOR CONTROLLER, 4.2A	STK672-442B-E vs STK681-310N-E

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 6640

Shipped from

HK warehouse

Expected Shipping Date

Sep 07 - Sep 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.8700~~	~~$5.87~~

Current price of STK672-442B-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
