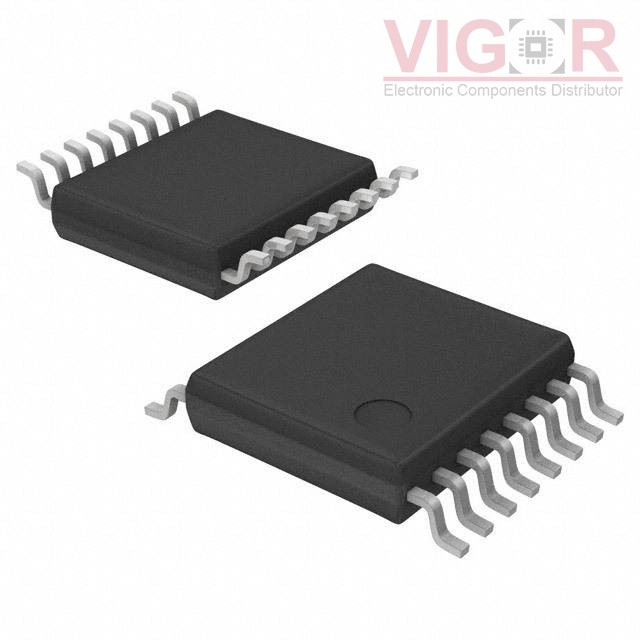

LB8503V-W-AH

Part No :: LB8503V-W-AH

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3919681

Description: IC MOTOR SPEED CTRL SA30

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LB8503V-W-AH PDF

Country of origin: -

Date code: -

LB8503V-W-AH Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Motor Type - Stepper:	-
Motor Type - AC, DC:	Brushless DC (BLDC), Brushed DC
Function:	Controller - Speed
Output Configuration:	Pre-Driver - Half Bridge (3)
Interface:	Analog, PWM
Technology:	-
Step Resolution:	-
Applications:	Fan Controller
Current - Output:	3mA
Voltage - Supply:	5.5V ~ 6.5V, 7.5V ~ 17V
Voltage - Load:	-
Operating Temperature:	-30°C ~ 95°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-SSOP
