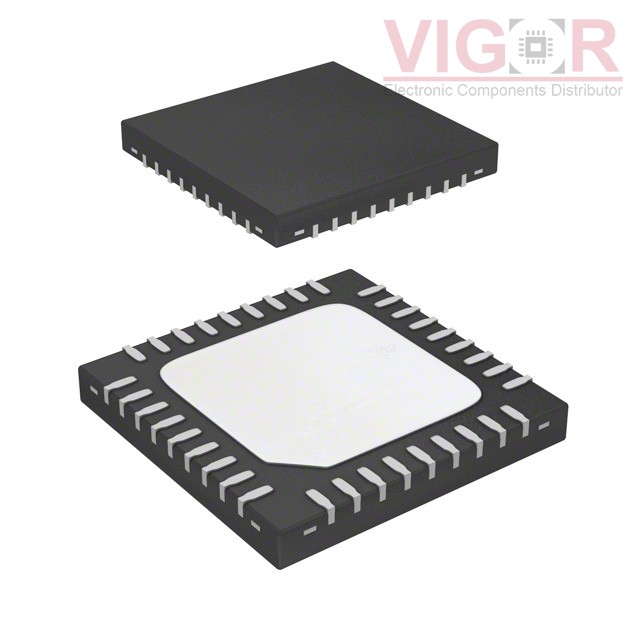

TB67S522FTAG,EL

Part No :: TB67S522FTAG,EL

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: IC MOTOR DRIVER 36WQFN

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TB67S522FTAG,EL PDF

Availability: 7917 pieces

Unit Price: ~~$2.95000~~

Current price of TB67S522FTAG,EL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TB67S522FTAG,EL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	Brushed DC
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (2)
Interface:	PWM
Technology:	-
Step Resolution:	1, 1/2, 1/4
Applications:	General Purpose
Current - Output:	2.8A
Voltage - Supply:	2V ~ 5.5V
Voltage - Load:	10V ~ 35V
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	36-WFQFN Exposed Pad
Supplier Device Package:	36-WQFN (6x6)

Please confirm the specifications of the products when ordering.
