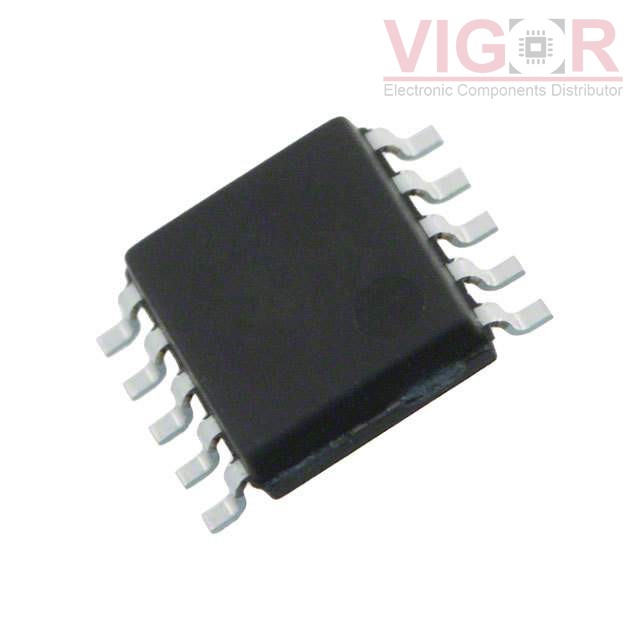

LB1948MC-BH

Part No :: LB1948MC-BH

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MTR DRV BIPOLR 2.5-16V 10MFPS

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LB1948MC-BH PDF

Availability: 7093 pieces

Unit Price: ~~$0.00000~~

Current price of LB1948MC-BH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LB1948MC-BH Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	Brushed DC
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	Parallel
Technology:	Bipolar
Step Resolution:	-
Applications:	General Purpose
Current - Output:	800mA
Voltage - Supply:	2.5V ~ 16V
Voltage - Load:	2.5V ~ 16V
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-LSOP (0.173", 4.40mm Width)
Supplier Device Package:	10-MFPS
