MC10XS3535HFKR2

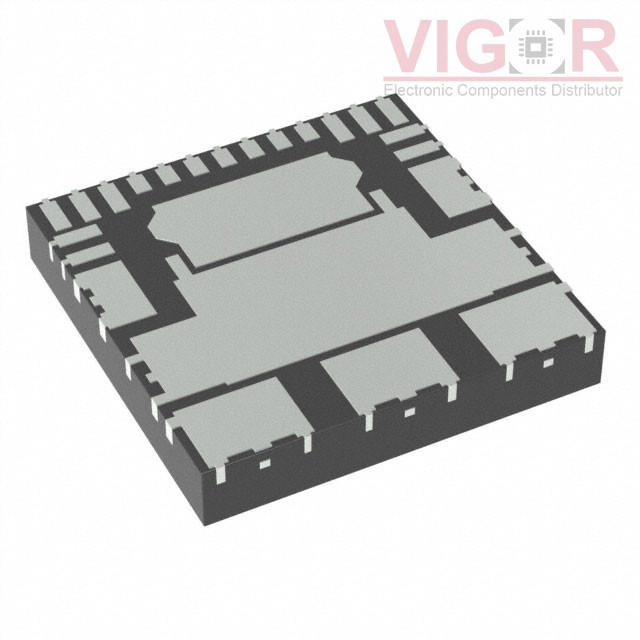

Image is for reference,
please contact us to get the real picture

Part No :: MC10XS3535HFKR2

Manufacturer: NXP Semiconductors

Description: IC PWR SWITCH N-CHAN 1:6 24PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC10XS3535HFKR2 PDF

Availability: 1458 pieces

Unit Price: ~~$8.69358~~

Current price of MC10XS3535HFKR2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MC10XS3535HFKR2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	6
Ratio - Input:Output:	1:6
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	7V ~ 20V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	-
Rds On (Typ):	10mOhm (Max), 35mOhm (Max)
Input Type:	-
Features:	Watchdog Timer
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	24-PQFN (12x12)
Package / Case:	24-PowerQFN

Please confirm the specifications of the products when ordering.
